DZQ-850/2SE
DFPACK
Meat, Seafood, Cooked Food, Granules, Liquids, Powders, Medical Equipment, Hardware
Pouch
Vacuum Packaging
High
This vacuum machine can be optionally equipped with a BUSCH pump. The standard is a 200-cubic-meter vacuum pump, and a larger and stronger vacuum pump can also be selected as an option.
This machine adopts pneumatic opening and closing of the cover and works fully automatically, saving time and effort.
This machine is equipped with an independent waterproof electrical box to ensure its normal operation in a humid environment or after cleaning.
This machine is controlled by PLC, is easy to operate and convenient to get started with.
This machine can ensure long-term, uninterrupted and highly efficient operation, making it an excellent choice for various large factories, food processing industries, slaughterhouses and other customers.
Unlike ordinary double-chamber vacuum machines, this machine adopts a pneumatic flap setting. Why is there such an upgrade? The main advantages are as follows: 1) The lid of the large double-flap vacuum packaging machine is relatively larger and heavier. After using the pneumatic flap setting, it can save a lot of manpower. 2) The pneumatic flap setting can be carried out automatically, which means that the vacuum machine has truly achieved fully automatic operation. 3) It is more efficient and convenient, allowing operators to master the operation after a simple learning process.
The Double View Vacuum Machine is widely used in the food industry, catering businesses, pharmaceutical industry, and various retail shops. It is suitable for packaging fresh fruits, vegetables, meats, dry goods, nuts, coffee beans, spices, etc., ensuring the freshness and safety of food during storage and transportation while reducing waste.
| Model | DZQ-850/2SE |
| Voltage | 3phase 380V 50Hz |
| Pump Power | 4kw |
| Pump Capacity | 200m³/h /Option |
| Sealing Length | 850mm（x4） |
| Sealing Width | 10mm |
| Cover Size | 965x770x210mm |
| Dimension | 1995x923x1120mm |
| Weight | ≈655kgs |
| Certification | CE ISO |
Dongfeng Packing：China's Top-Tier Brand with 36 Years of Excellence
Since our factory's establishment in 1989, we have dedicated decades to specializing in the vacuum packaging industry. Recognized as a National High-Tech Enterprise by the Chinese government and holding 100+ patents, we serve as a certified supplier to distinguished clients including：
·Chinese Government Supply Units
·Bank of China
·Sam's Club
·and other global entities
CERTIFICATE
Global Distributor Program | 12+ International Exhibitions Annually
With 36+ years of vacuum packaging expertise, we showcase CE-certified, self-designed machinery at premier exhibitions including CANTON FAIR, INTERPACK, PROPAK, and SWOP.
Highlights
Global Support:Annual production capacity exceeding 2,000,000 units. Exported to 100+ countries.
Tailored Solutions:Our team delivers professional vacuum packaging solutions leveraging extensive experience, backed by reliable after-sales service.
Clients as Partners:We treat every customer as a valued partner, prioritizing their needs and concerns to ensure tangible benefits.

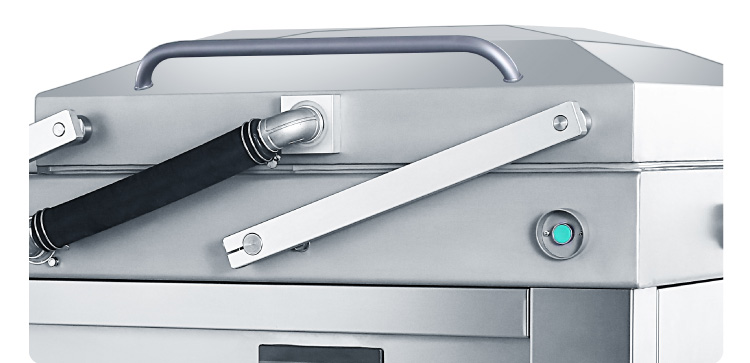

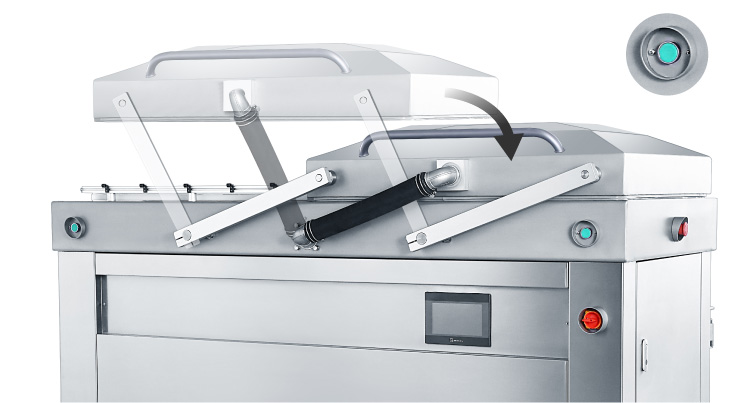

PNEUMATIC OPEN/CLOSE COVER
Pneumatic lid opening/closing allows effortless operation, improves efficiency, and reduces operator fatigue on large vacuum packaging machines
one keys

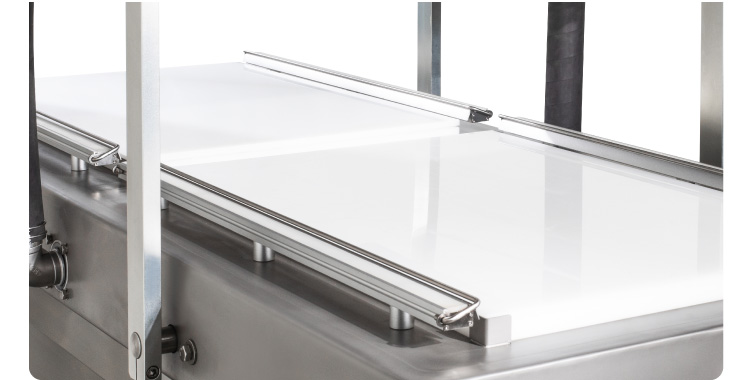

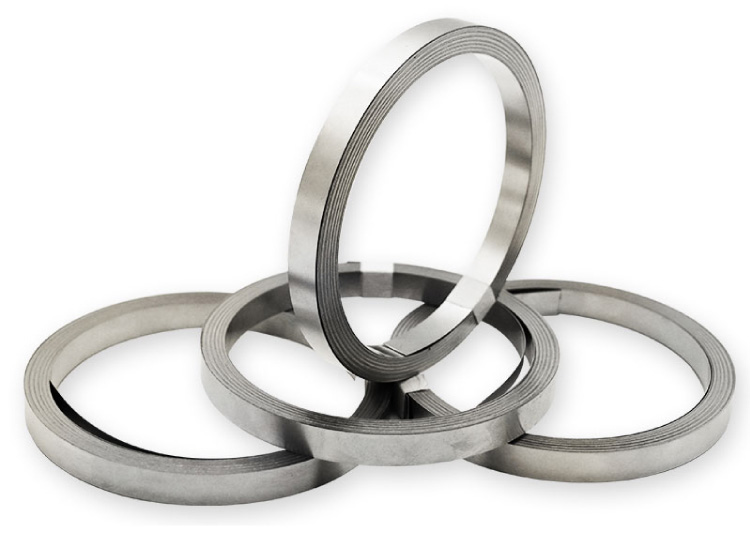

NICKEL-CHROMIUM ALLOY
High temperature and anti-oxidation resistance, plug and play design, easy to replace (including 2 spare wires)

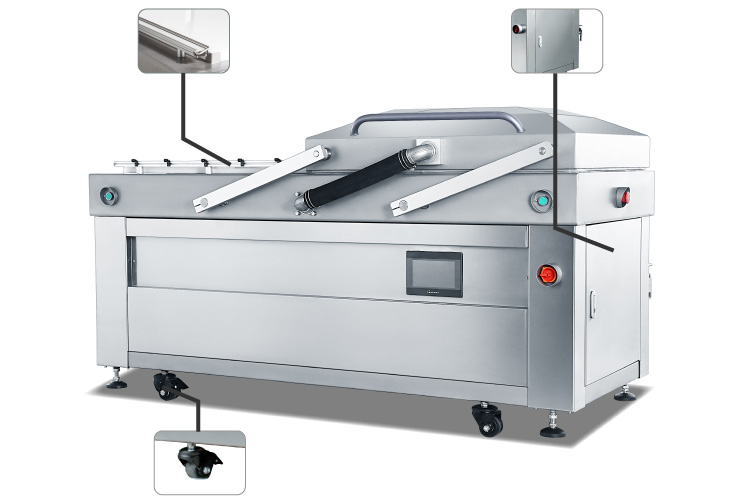

MATERIAL SPECIFICATIONS
The machine body is made of durable 304 stainless steel
FDA-grade silicone seals with <0.05% leakage rate (1 spare set included)
Openable body
Universal wheel with brake

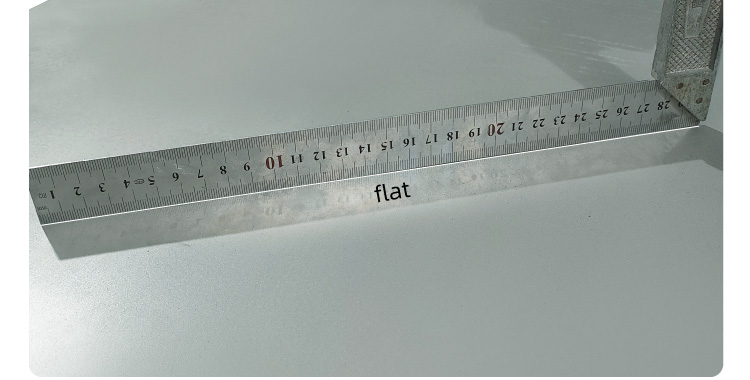

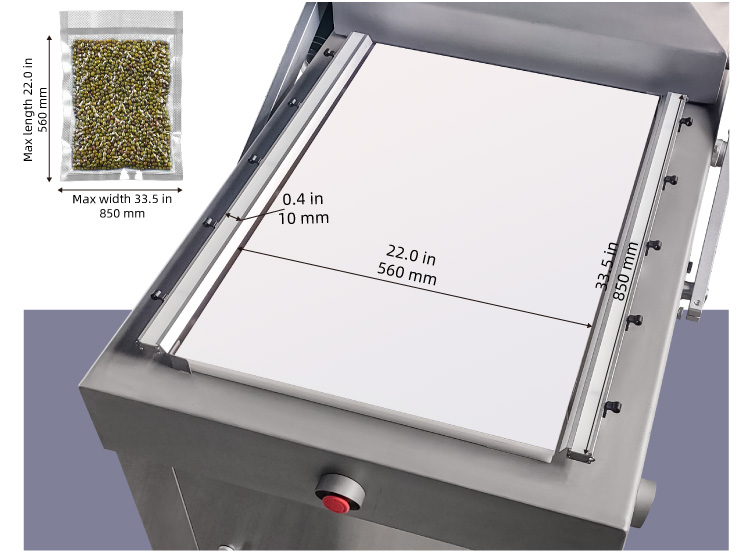

FLAT VACUUM CHAMBER
The flat table and seal fit perfectly
EASY TO CLEAN
The surface of the machine is smooth and easy to clean

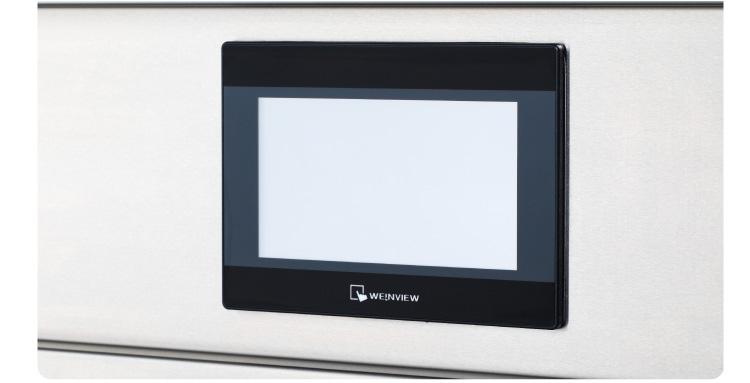

PROGRAMMABLE PLC PANEL
The device features smart operation (automated control + user-friendly interface), precise settings (vacuum/sealing time control)
COMPLETE STAINLESS STEEL STRUCTURE FOR MAX DURABILITY
Prevent electronic and parts from oxidation

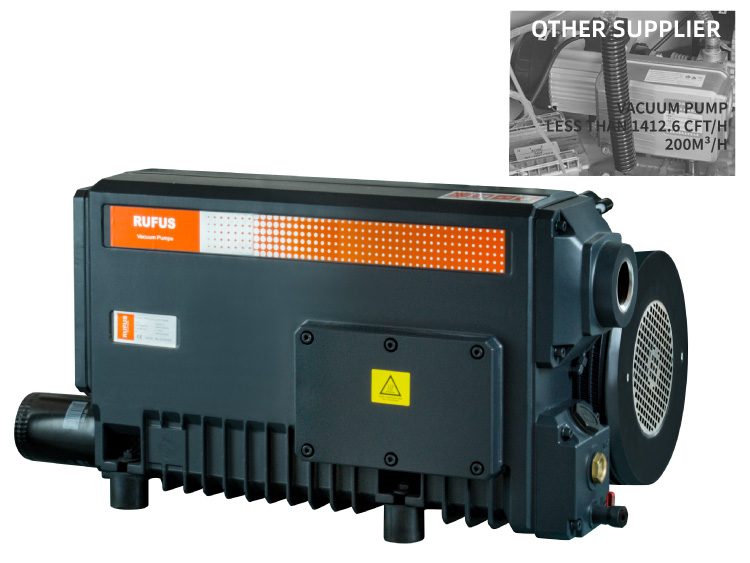

INDUSTRIAL VACUUM SYSTEM
Anti-corrosion pump with wear-resistant blades for extended heavy-duty operation

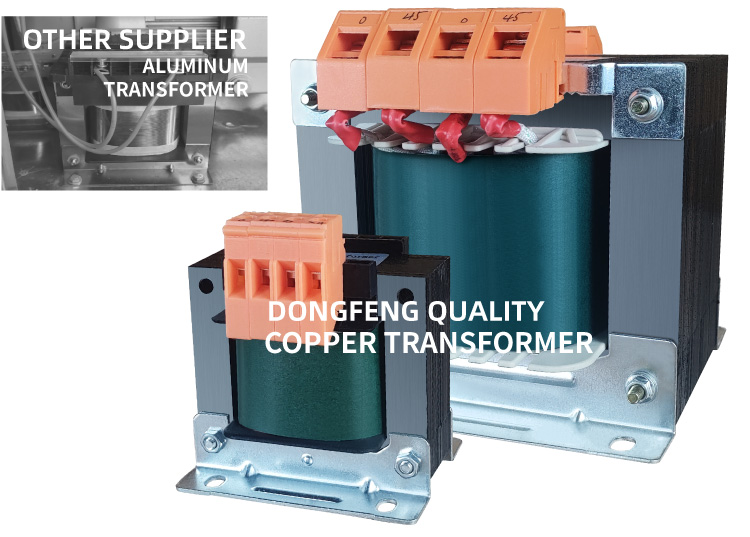

DONGFENG'S COPPER-CORE TRANSFORMERS
Dual pure-coil transformers ensure maximum conductivity + heat resistance for stable operation.vs Budget Aluminum Transformers Lower-cost machines use aluminum coils, increasing resistance and fatigue failure risk during continuous use.
| Copper wire transformer | What are the differences between copper and aluminum transformers | Aluminum wire transformer |
| strong | Electrical conductivity | weak |
| high | Fusing point | low |
| strong | Short-circuit resistance | weak |
| higher | Mechanical strength | lower |
| low | Electrical resistivity | Easy to increase |

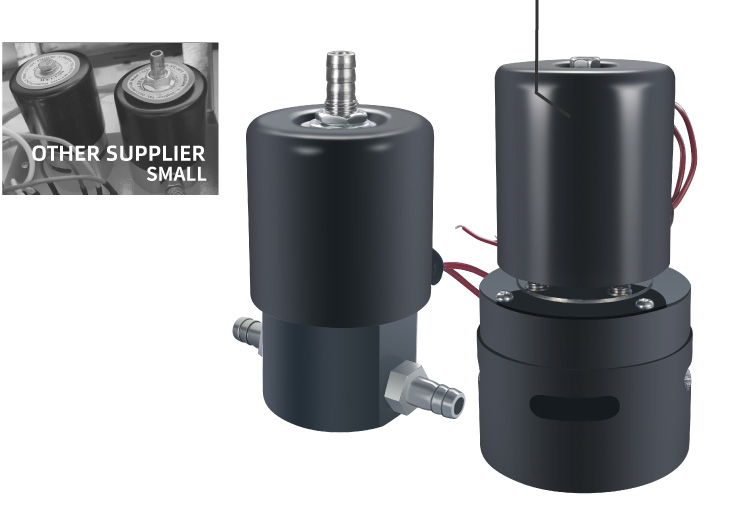

INDUSTRIAL-GRADE SOLENOID VALVES
Dongfeng machines feature large solenoid valves for accelerated pumping, sustained efficiency, and stable sealing quality.
APPLICATION
DZQ-850 2SE bench vacuum packaging machine is suitable for vacuum sealing of various heat sealing packaging. The packaged products can prevent oxidation, mildew, insect and moisture, and can be kept fresh for a long time.

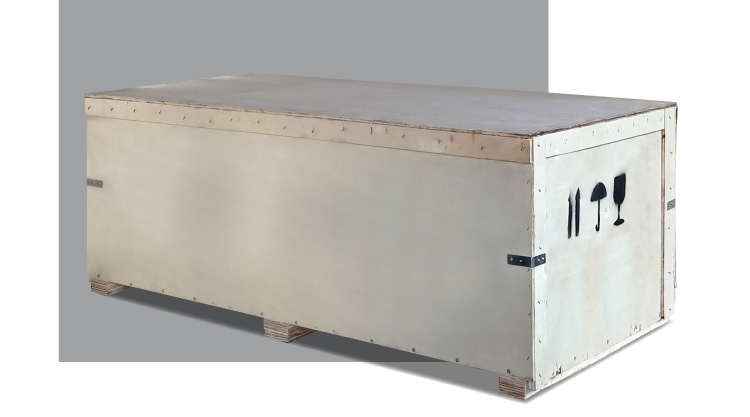

PACKAGING & SHIPPING
Your machine will be delivered by sea, air or express according to your needs.Before packaging, the goods are first wrapped with protective film to prevent scratches and corrosion, and then placed in wooden boxes for shipment.
OUT OF THE BOX
No installation required
So far, the factory covers an area of 26,800 square meters and has more than 300 workers, among whom there are 40 engineering and technical personnel. As a national high-tech enterprise, we have a mature management system covering R&D, production, sales, quality inspection and after-sales service. After 36 years of efforts, our company's annual production capacity is currently approximately 2,000,000 sets, and our products are exported to over 100 countries.
