DZQ-600/2SA
DFPACK
Meat, Seafood, Cooked Food, Fruits and Vegetables, Granules, Liquids, Powders, Medical Equipment, Hardware
Pouch
Vacuum Packaging
High
The DZQ-600/2SA double-chamber vacuum sealer is an advanced and efficient packaging device designed for vacuum sealing food, pharmaceuticals, and other products. It features two independently operated vacuum chambers, allowing users to handle multiple bags simultaneously, thereby significantly improving work efficiency and production capacity.
High Efficiency: The double-chamber vacuum machine features two chambers, allowing simultaneous vacuum packaging in both chambers, significantly improving production efficiency and reducing waiting time, making it ideal for high-volume operations.
Flexible Operation: Each chamber can be controlled independently, allowing operators to process different types of products in each chamber, which enhances flexibility and adaptability in the production process.
Reduced Operator Labor Intensity: The double-chamber design allows one chamber to continue working while the other is sealing, enabling operators to perform other tasks while waiting for the vacuum sealing process to complete, thus reducing operator workload.
Improved Packaging Quality: The double-chamber vacuum machine precisely controls the vacuum and sealing process, ensuring airtight seals and consistent packaging quality, which helps extend the shelf life of food or other products and maintains their freshness.
Space-Saving Design: Despite offering two work chambers, the double-chamber vacuum machine typically has a compact design that doesn’t occupy excessive production space, making it suitable for environments with limited space.
The Double Chamber Vacuum Machine is an advanced food packaging system designed for high-volume packaging needs. Featuring two separate chambers, this machine allows for continuous and efficient packaging operations—while one chamber is being vacuumed and sealed, the other can be loaded or unloaded. This significantly increases productivity and is ideal for medium to large-scale food processing businesses, commercial kitchens, and packaging operations. The machine effectively removes air from food packaging, preserving the freshness, flavor, and nutritional value of the contents by reducing oxidation and preventing bacterial growth.
The Double Chamber Vacuum Machine is highly versatile and is used across various industries, including food production, catering, pharmaceuticals, and more. It is perfect for packaging a wide range of products, including fresh meat, seafood, vegetables, dry snacks, prepared meals, coffee beans, and more. This machine ensures that all packaged items maintain their quality, freshness, and safety during storage, transportation, and sale.
Continuous Operation: With two chambers, one chamber can be used for sealing while the other is loaded and unloaded, allowing for continuous operation without downtime and maximizing efficiency.
Improved Shelf Life: By effectively removing air and sealing the packaging, this machine slows down the oxidation process and reduces the risk of spoilage, which helps extend the shelf life of food products.
Increased Productivity: The double-chamber design improves packaging speed, making it a great choice for businesses with high packaging demands, increasing throughput and operational efficiency.
User-Friendly: Easy to operate with clear controls and a simple loading/unloading process, reducing operator error and training time, ideal for high-volume environments.
Adaptable to Various Packaging Materials: Compatible with a variety of vacuum-seal bags (PE, PA, EVOH, etc.), this machine is flexible and can be used with different materials to meet specific product packaging needs.
Energy Efficient: Designed to minimize energy consumption without compromising on performance, making it an environmentally friendly option for large-scale packaging operations.
| Model | DZQ-600/2SA |
| Voltage | 110/220/380V 50-60Hz |
| Pump Power | 1.8kw |
| Pump Capacity | 20m³/h（x2）/Option |

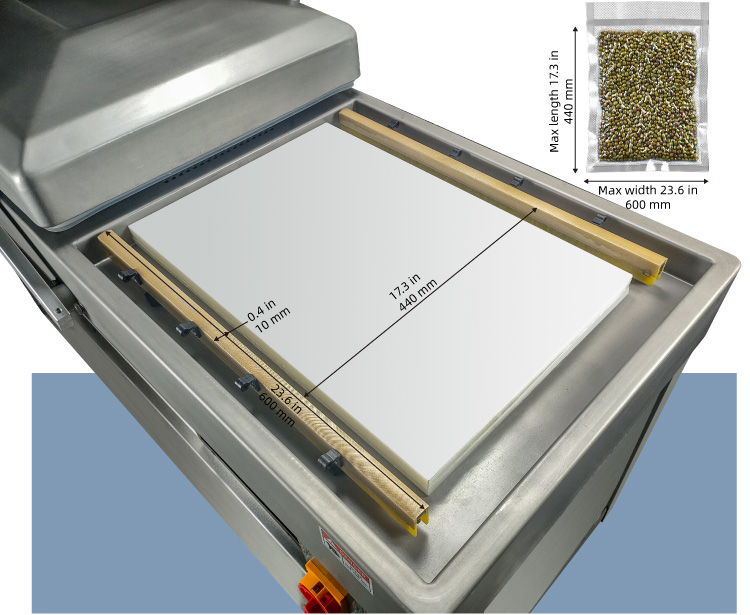

| Sealing Length | 600mm（x4） |
| Sealing Width | 10mm |
| Chamber Size | 662x546x50mm(without cover) |
| Dimension | 1460x690x960mm |
| Weight | ≈205kgs |
| Certification | CE ISO |
Dongfeng Packing：China's Top-Tier Brand with 36 Years of Excellence
Since our factory's establishment in 1989, we have dedicated decades to specializing in the vacuum packaging industry. Recognized as a National High-Tech Enterprise by the Chinese government and holding 100+ patents, we serve as a certified supplier to distinguished clients including：
·Chinese Government Supply Units
·Bank of China
·Sam's Club
·and other global entities
CERTIFICATE
Global Distributor Program | 12+ International Exhibitions Annually
With 36+ years of vacuum packaging expertise, we showcase CE-certified, self-designed machinery at premier exhibitions including CANTON FAIR, INTERPACK, PROPAK, and SWOP.
Highlights
Global Support:Annual production capacity exceeding 2,000,000 units. Exported to 100+ countries.
Tailored Solutions:Our team delivers professional vacuum packaging solutions leveraging extensive experience, backed by reliable after-sales service.
Clients as Partners:We treat every customer as a valued partner, prioritizing their needs and concerns to ensure tangible benefits.
WHERE INNOVATION MEETS YOUR NEEDS.
Ten Strengths, One Unstoppable Solution.10X the Benefits, Zero Compromise

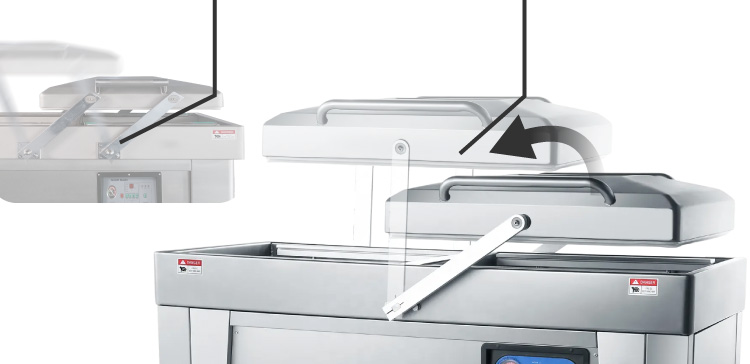

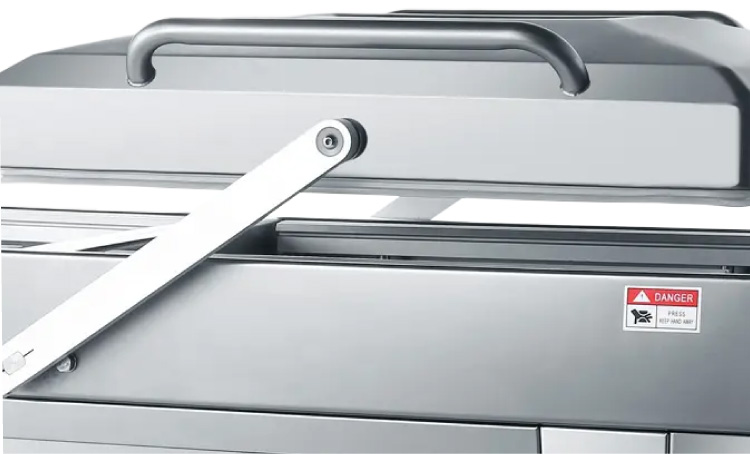

AUTOMATIC LID SYSTEM WITH PREMIUM SPRINGS
Delivers smooth, hands-free lid opening for ergonomic operation, eliminating manual lifting fatigue common in basic flip-lid sealers.
32Newtons
Other brands machine Lid swing need
14Newtons
Lid swing only need

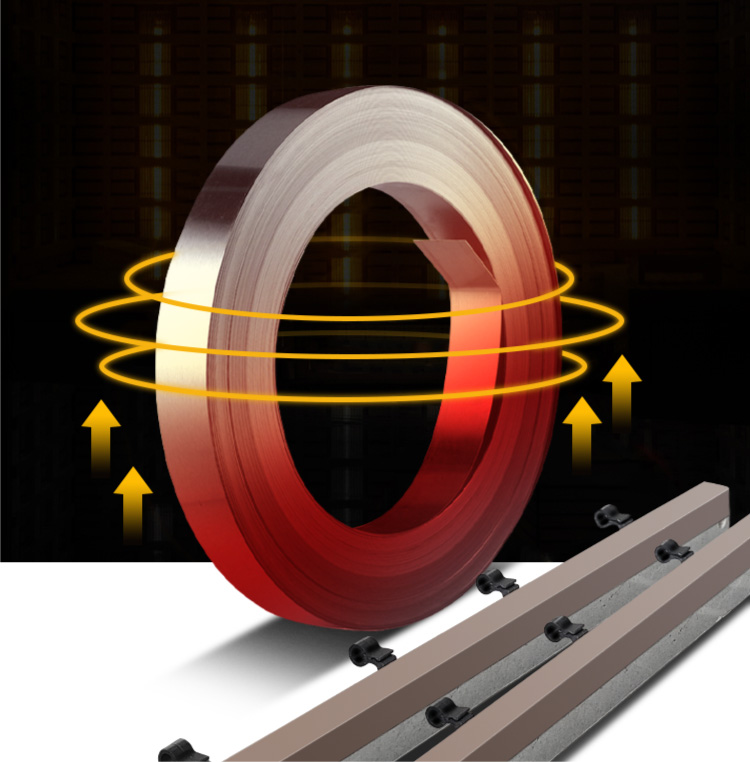

NICKEL-CHROMIUM ALLOY
High temperature and anti-oxidation resistance, plug and play design, easy to replace (including 2 spare wires)

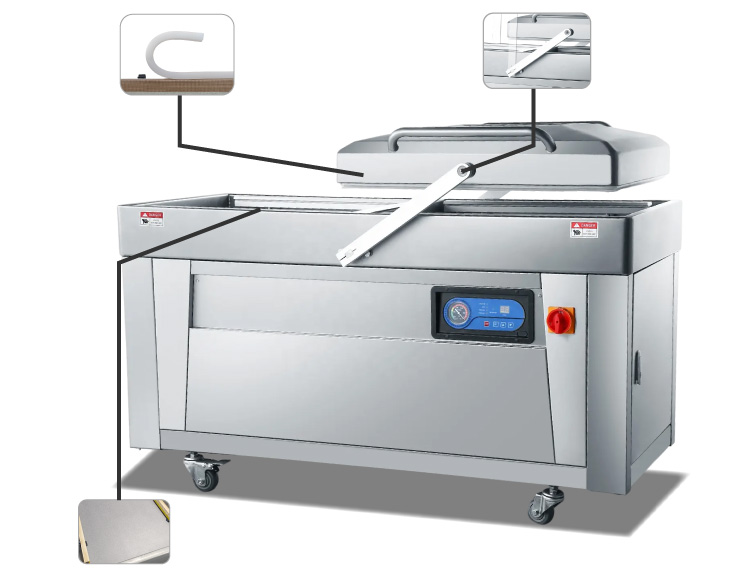

MATERIAL SPECIFICATIONS
The machine body is made of durable 304 stainless steel
FDA-grade silicone seals with <0.05% leakage rate (1 spare set included)
Robust stainless steel structure withstands 100,000+ closures
Good process and finshing

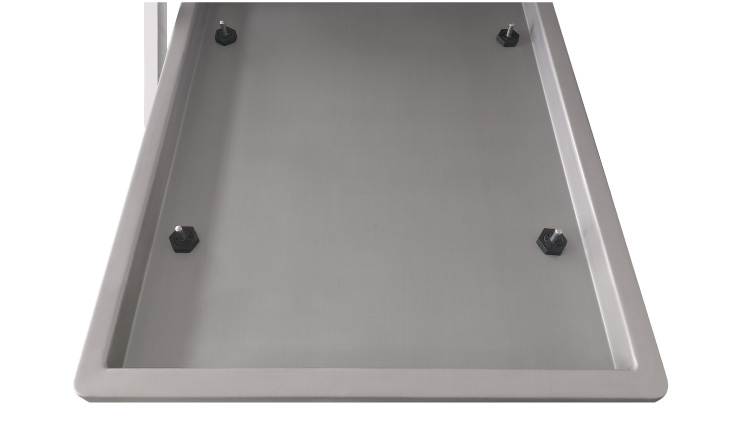

EASY TO CLEAN
Stainless steel frame, beautiful appearance, wet and corrosion resistance, long service life

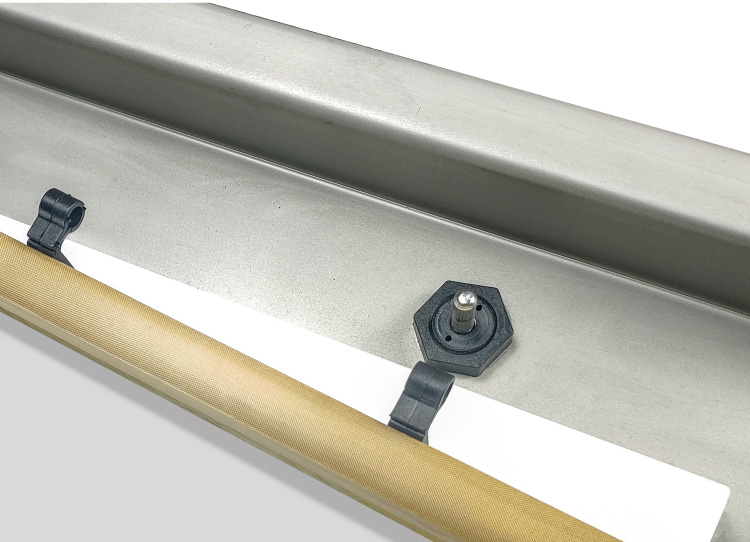

SEALING DESIGN
Insert and pull sealing strip for easy replacement
DURABLE STRUCTURE
Core components have been subjected to 50,000 cycles of fatigue testing and with regular maintenance, the service life is more than 10 years

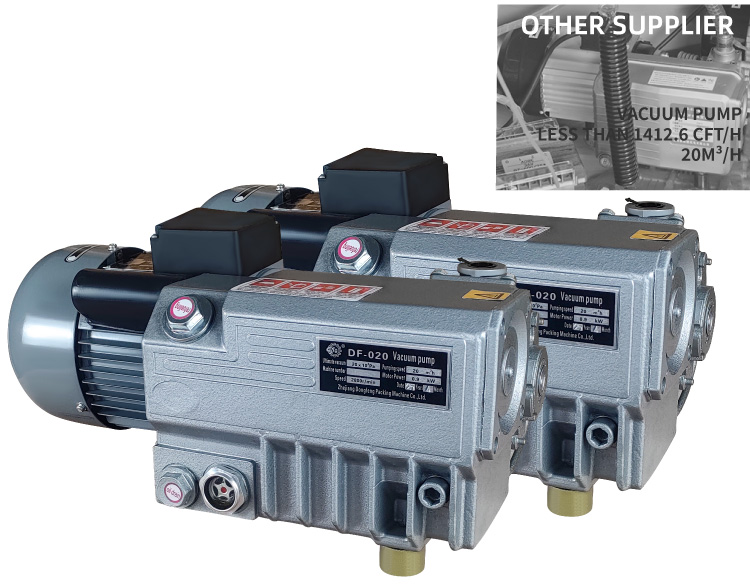

INDUSTRIAL VACUUM SYSTEM
Anti-corrosion pump with wear-resistant blades for extended heavy-duty operation

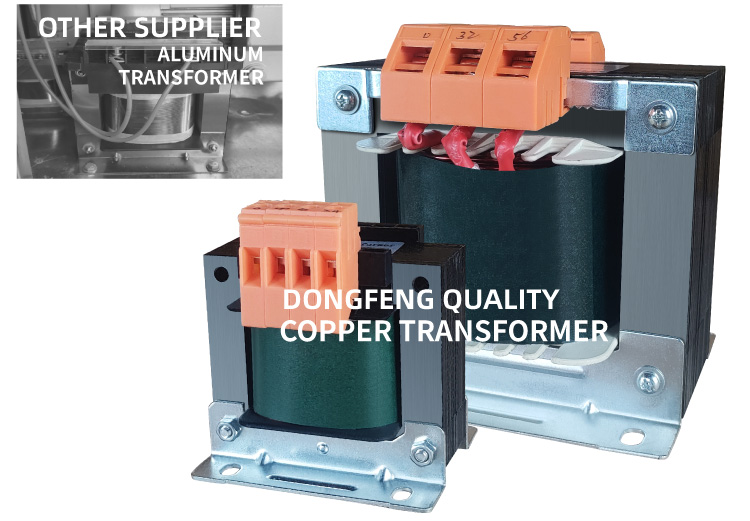

DONGFENG'S COPPER-CORE TRANSFORMERS
Dual pure-coil transformers ensure maximum conductivity + heat resistance for stable operation.vs Budget Aluminum Transformers Lower-cost machines use aluminum coils, increasing resistance and fatigue failure risk during continuous use.
| Copper wire transformer | What are the differences between copper and aluminum transformers | Aluminum wire transformer |
| strong | Electrical conductivity | weak |
| high | Fusing point | low |
| strong | Short-circuit resistance | weak |
| higher | Mechanical strength | lower |
| low | Electrical resistivity | Easy to increase |

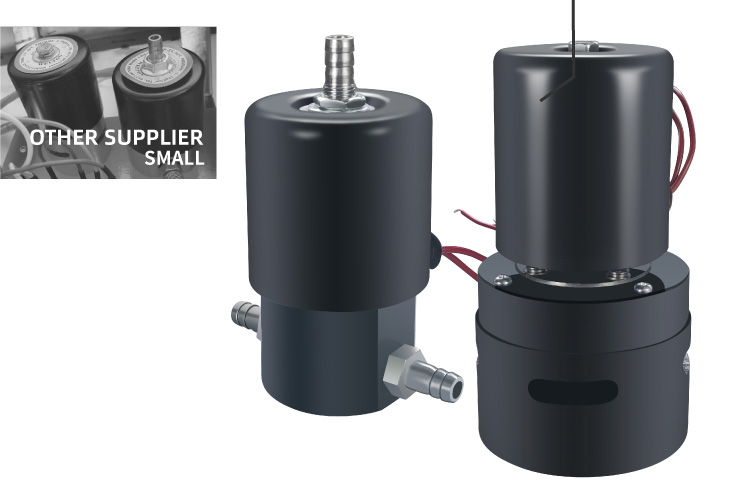

INDUSTRIAL-GRADE SOLENOID VALVES
Dongfeng machines feature large solenoid valves for accelerated pumping, sustained efficiency, and stable sealing quality.
APPLICATION
DZQ-600 2SA bench vacuum packaging machine is suitable for vacuum sealing of various heat sealing packaging. The packaged products can prevent oxidation, mildew, insect and moisture, and can be kept fresh for a long time.

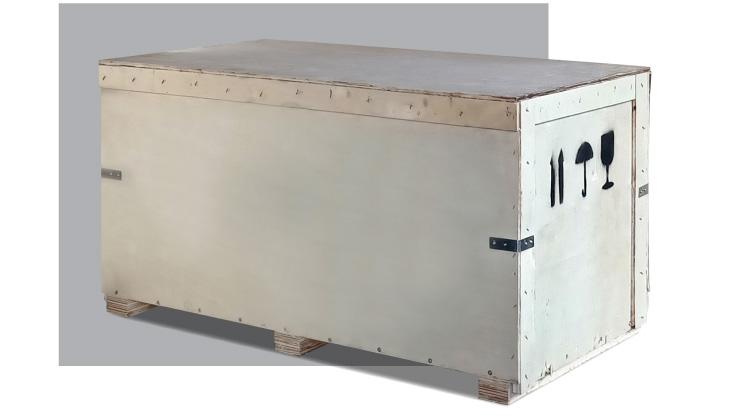

PACKAGING & SHIPPING
Your machine will be delivered by sea, air or express according to your needs.Before packaging, the goods are first wrapped with protective film to prevent scratches and corrosion, and then placed in wooden boxes for shipment.
OUT OF THE BOX
No installation required
So far, the factory covers an area of 26,800 square meters and has more than 300 workers, among whom there are 40 engineering and technical personnel. As a national high-tech enterprise, we have a mature management system covering R&D, production, sales, quality inspection and after-sales service. After 36 years of efforts, our company's annual production capacity is currently approximately 2,000,000 sets, and our products are exported to over 100 countries.
