DZQ-850/2SA
DFPACK
Meat, Seafood, Cooked Food, Fruits and Vegetables, Baking, Liquids, Powders, Medical Equipment, Hardware
Pouch
Vacuum Packaging
High

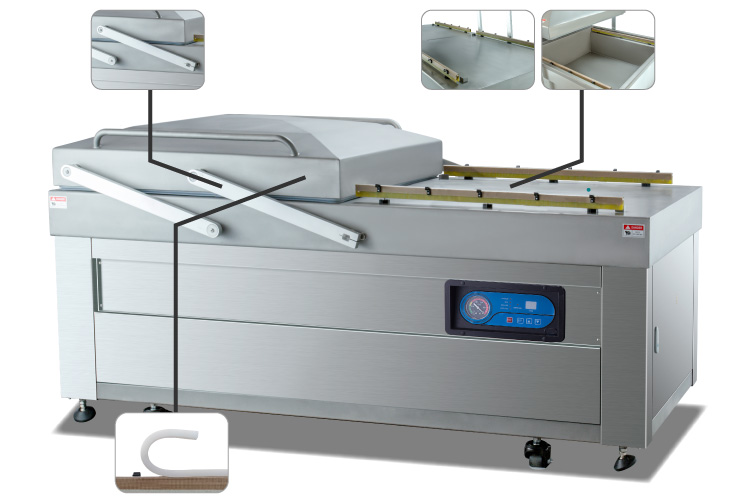

Made of 96% stainless steel.
Patented technology allows for easy transfer of the 850 vacuum cover to another chamber.
Optional vacuum pumps available (100-200m³); larger m³ provides greater suction power.
Equipped with concave vacuum chambers to effectively address product space issues.
Controlled by a PCB board.
Optional inflation function available.
Removable sealing bars for easy and convenient replacement of heating wires.
Features a separate electrical control box for quicker maintenance and inspection.
Includes a cooling fan to effectively reduce heat generated by the large vacuum pump.
| Model | DZQ-850/2SA |
| Voltage | 3phase 220/380V 50-60Hz |
| Pump Power | 4kw |
| Pump Capacity | 200m³/h /Option |

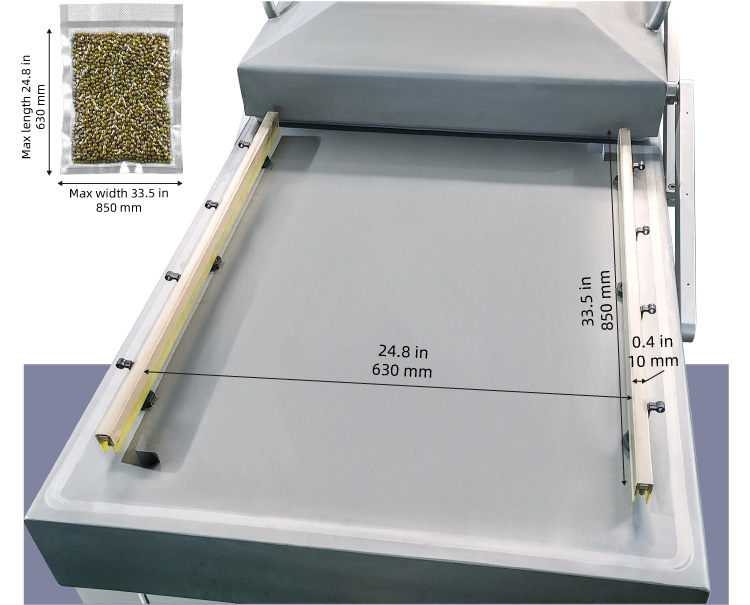

| Sealing Length | 850mm（x4） |
| Sealing Width | 10mm |
| Cover Size | 1050x830x210mm |
| Dimension | 2060x940x1115mm |
| Weight | ≈510kgs |
| Certification | CE ISO |
Dongfeng Packing：China's Top-Tier Brand with 36 Years of Excellence
Since our factory's establishment in 1989, we have dedicated decades to specializing in the vacuum packaging industry. Recognized as a National High-Tech Enterprise by the Chinese government and holding 100+ patents, we serve as a certified supplier to distinguished clients including：
·Chinese Government Supply Units
·Bank of China
·Sam's Club
·and other global entities
CERTIFICATE
Global Distributor Program | 12+ International Exhibitions Annually
With 36+ years of vacuum packaging expertise, we showcase CE-certified, self-designed machinery at premier exhibitions including CANTON FAIR, INTERPACK, PROPAK, and SWOP.
Highlights
Global Support:Annual production capacity exceeding 2,000,000 units. Exported to 100+ countries.
Tailored Solutions:Our team delivers professional vacuum packaging solutions leveraging extensive experience, backed by reliable after-sales service.
Clients as Partners:We treat every customer as a valued partner, prioritizing their needs and concerns to ensure tangible benefits.
WHERE INNOVATION MEETS YOUR NEEDS.
Ten Strengths, One Unstoppable Solution. 10X the Benefits, Zero Compromise

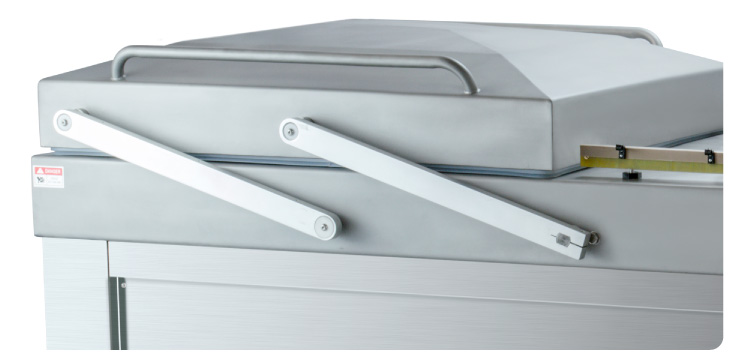

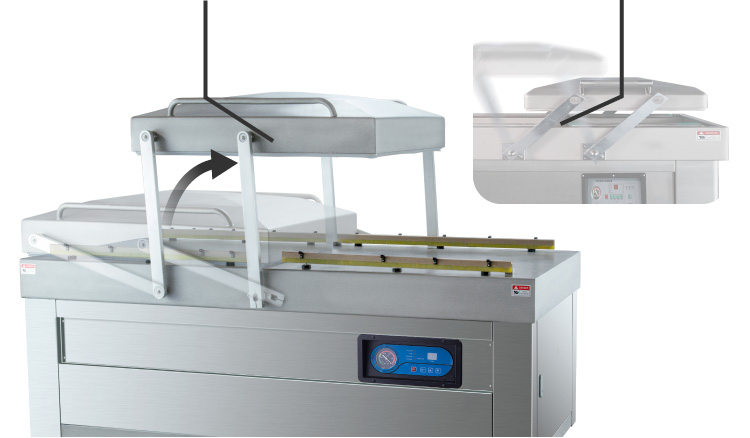

AUTOMATIC LID SYSTEM WITH PREMIUM SPRINGS
Delivers smooth, hands-free lid opening for ergonomic operation, eliminating manual lifting fatigue common in basic flip-lid sealers.
26Newtons
Lid swing only need
58Newtons
Other brands machine Lid swing need

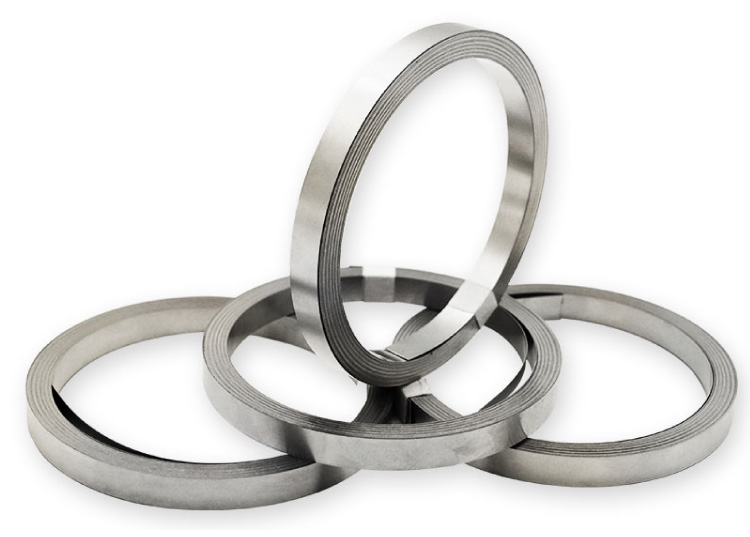

NICKEL-CHROMIUM ALLOY
High temperature and anti-oxidation resistance, plug and play design, easy to replace (including 2 spare wires)
MATERIAL SPECIFICATIONS
The machine body is made of durable 304 stainless steel
Robust stainless steel structure withstands 100,000+ closures
In-house R&D team support Adjustable chamber sizes
FDA-grade silicone seals with <0.05% leakage rate (1 spare set included)

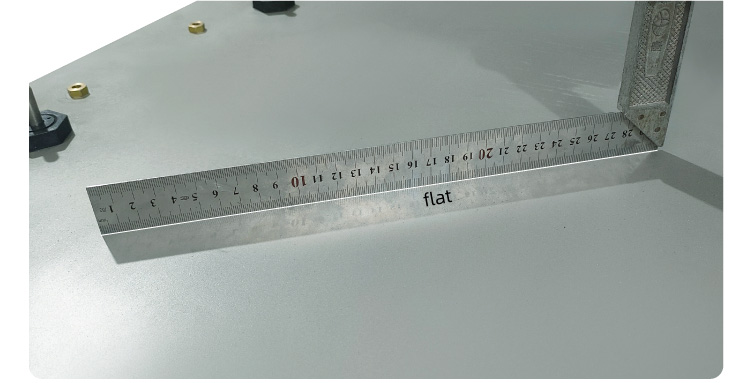

FLAT VACUUM CHAMBER
Exquisite production technology ensures the airtightness of the vacuum chamber

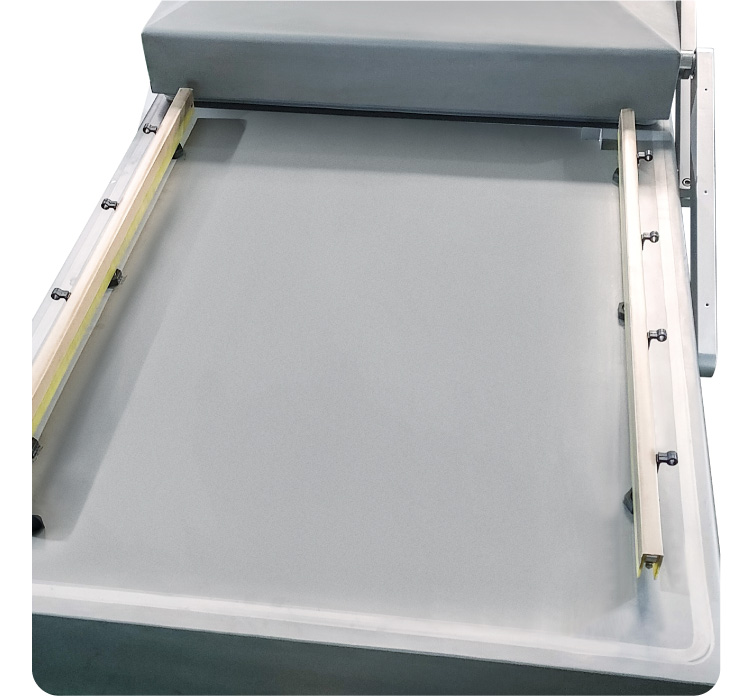

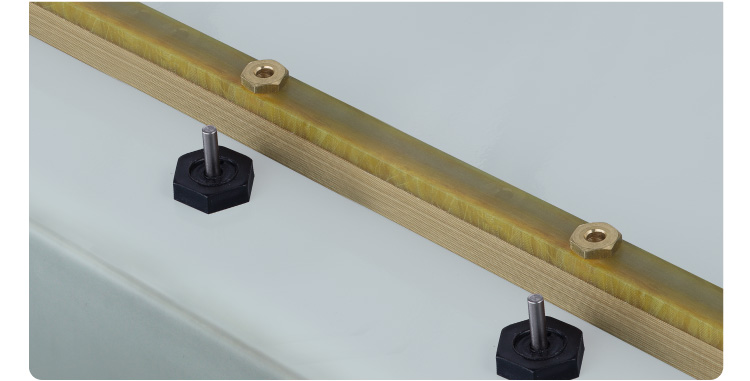

SEALING DESIGN
Insert and pull sealing strip for easy replacement
VACUUM FASTER
Flat plate vacuum chamber, faster vacuum speed
DURABLE STRUCTURE
Core components have been subjected to 50,000 cycles of fatigue testing and with regular maintenance, the service life is more than 10 years

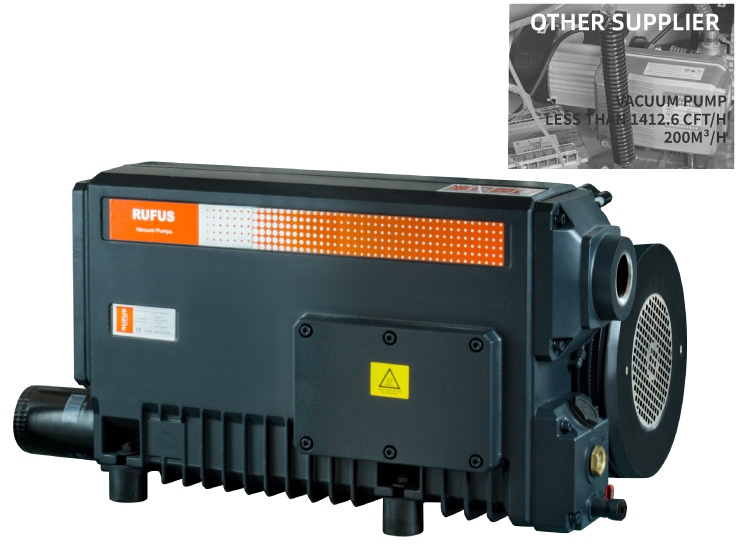

INDUSTRIAL VACUUM SYSTEM
Anti-corrosion pump with wear-resistant blades for extended heavy-duty operation

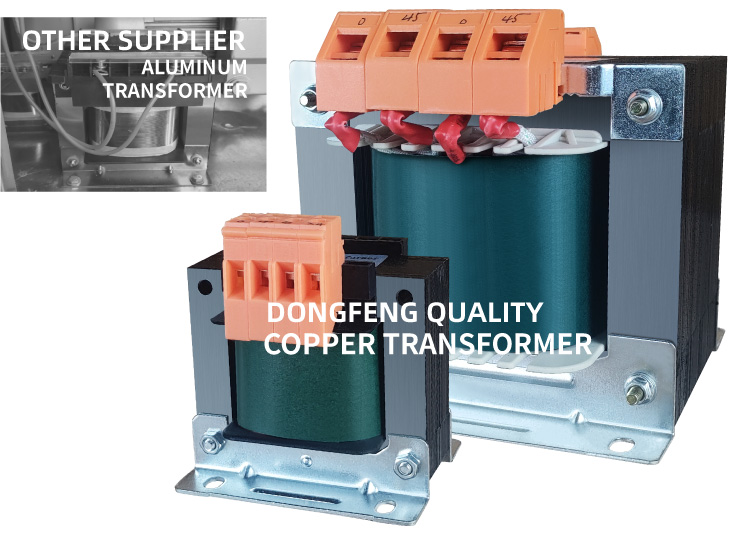

DONGFENG'S COPPER-CORE TRANSFORMERS
Dual pure-coil transformers ensure maximum conductivity + heat resistance for stable operation.vs Budget Aluminum Transformers Lower-cost machines use aluminum coils, increasing resistance and fatigue failure risk during continuous use.
| Copper wire transformer | What are the differences between copper and aluminum transformers | Aluminum wire transformer |
| strong | Electrical conductivity | weak |
| high | Fusing point | low |
| strong | Short-circuit resistance | weak |
| higher | Mechanical strength | lower |
| low | Electrical resistivity | Easy to increase |

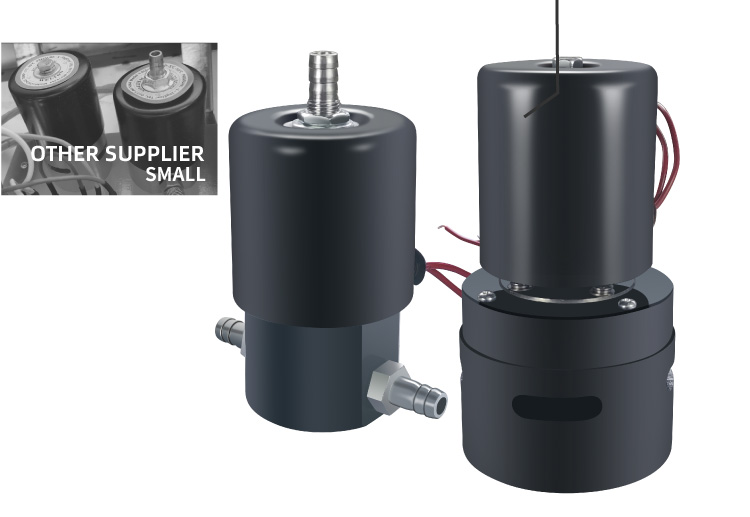

INDUSTRIAL-GRADE SOLENOID VALVES
Dongfeng machines feature large solenoid valves for accelerated pumping, sustained efficiency, and stable sealing quality.
APPLICATION
DZQ-850 2SA flat bench vacuum packaging machine is suitable for vacuum sealing of various heat sealing packaging. The packaged products can prevent oxidation, mildew, insect and moisture, and can be kept fresh for a long time.

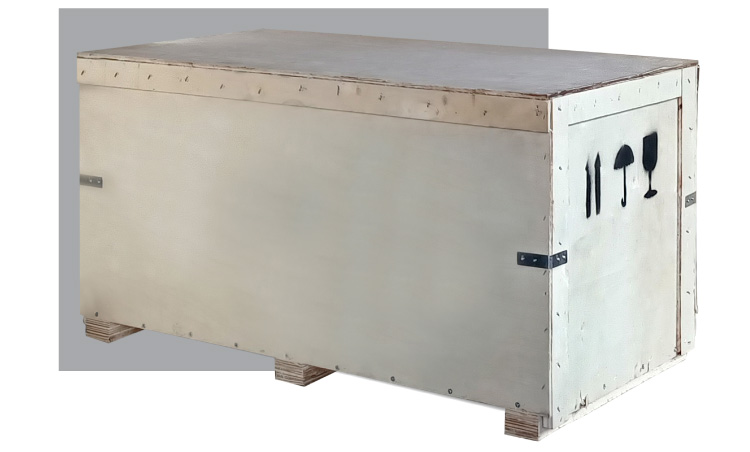

PACKAGING & SHIPPING
Your machine will be delivered by sea, air or express according to your needs.Before packaging, the goods are first wrapped with protective film to prevent scratches and corrosion, and then placed in wooden boxes for shipment.
OUT OF THE BOX
No installation required
So far, the factory covers an area of 26,800 square meters and has more than 300 workers, among whom there are 40 engineering and technical personnel. As a national high-tech enterprise, we have a mature management system covering R&D, production, sales, quality inspection and after-sales service. After 36 years of efforts, our company's annual production capacity is currently approximately 2,000,000 sets, and our products are exported to over 100 countries.
FAQ
Q: What is the main function of a double-chamber vacuum packaging machine?
A: A double-chamber vacuum packaging machine is used to perform vacuum extraction and sealing operations simultaneously in two chambers, which improves production efficiency and is particularly suitable for high-volume packaging of food and other items.
Q: How do I set the vacuum level and sealing time on a double-chamber vacuum packaging machine?
A: The vacuum level and sealing time are typically adjusted through buttons or knobs on the control panel. For specific instructions, refer to the machine's user manual to ensure settings meet packaging requirements.
Q: What types of packaging materials are suitable for a double-chamber vacuum packaging machine?
A: It is suitable for various heat-resistant vacuum packaging bags, such as plastic bags and aluminum foil bags, and is ideal for packaging a wide range of food and other items that require vacuum sealing.
Q: How should I maintain and care for a double-chamber vacuum packaging machine?
A: Regularly clean the vacuum pump and sealing bars, check the vacuum pump oil level and replace it as needed. Ensure that the sealing bars and gaskets are in good condition to maintain effective vacuum sealing.
Q: What should I do if the double-chamber vacuum packaging machine has issues with air leaks or poor sealing?
A: Check if the sealing bars are worn out or dirty, and ensure that the bags are properly positioned and free from damage. Adjust the vacuum level and sealing time settings to meet packaging requirements. If the problem persists, check the condition of the vacuum pump or contact technical support.
