Ever wondered how your favorite beverages get perfectly filled in bottles? Liquid filling machines are the unsung heroes behind this magic. Choosing the right filling method is crucial for effective packaging, ensuring product quality and reducing waste. In this post, you'll learn about six common liquid filling methods and how to select the best one for your needs.
Atmospheric filling, also called gravity filling, is one of the simplest and most cost-effective liquid filling methods. It works by letting the liquid flow naturally into the container due to gravity and atmospheric pressure. The liquid flows from a reservoir or tank above the filling station down into the container until it reaches the desired level.
This method suits thin, still liquids like water, fruit juices, milk, and wine. Because these liquids flow easily, gravity filling can fill containers quickly and efficiently without needing complex machinery. It’s commonly used in industries like beverage production and food packaging where high-speed filling of non-carbonated liquids is required.
Applications and Benefits:
Used for non-carbonated beverages such as water, juice, milk, and wine.
Cost-effective due to simple design and minimal mechanical components.
Fast filling speeds make it ideal for large-scale production.
Easy to operate and maintain, reducing downtime and training needs.
Gentle on the liquid, preventing foaming or splashing during filling.
Limitations and Considerations:
Not suitable for carbonated or foaming liquids as it cannot control pressure, leading to loss of carbonation or excessive foam.
Less effective for thick or viscous liquids that don’t flow easily under gravity.
Filling accuracy can vary depending on container shape and size, so additional controls may be needed for precise volume measurement.
Containers must be open and accessible from the top for gravity to work effectively.
Atmospheric filling machines usually require the liquid tank to be positioned above the filling heads, which can impact factory layout.
In summary, atmospheric filling is an excellent choice for filling thin, still liquids quickly and economically. However, it’s important to consider the liquid’s properties and container design to ensure consistent fill levels and product quality.
Tip: When using atmospheric filling, ensure your liquid reservoir is positioned correctly above the filling heads to maintain steady flow and avoid interruptions on your production line.
Isobaric filling, also called counter-pressure filling, is a specialized method designed for carbonated beverages like soda, beer, and sparkling water. The key to this technique lies in balancing the pressure inside the container with the pressure of the liquid being filled. This balance prevents foaming and loss of carbonation, which are common challenges when filling fizzy drinks.
How It Works:
Before filling, the container is pressurized to match the liquid's pressure. The filling valve opens only when the pressures equalize, allowing the liquid to flow smoothly into the container without agitation. This controlled environment keeps carbonation intact and minimizes foaming, ensuring the product maintains its intended taste and texture.
Applications:
Isobaric filling is ideal for beverages that rely on carbonation for their appeal. Soft drinks, beers, and sparkling waters benefit most from this method. It also suits products sensitive to oxygen exposure since the process limits air contact, helping extend shelf life.
Advantages:
Maintains carbonation, preserving the beverage’s fizz and flavor.
Reduces foaming, which decreases product loss and speeds up production.
Minimizes oxygen exposure, enhancing product freshness and shelf life.
Provides consistent fill levels and quality across batches.
Challenges:
Equipment is more complex and costly than basic filling machines.
Requires precise control of pressure to avoid under- or over-filling.
Not suitable for non-carbonated or highly viscous liquids.
Maintenance and calibration demand skilled operators.
In summary, isobaric filling offers a reliable solution for the beverage industry, particularly when preserving carbonation and product quality is critical. Though it requires more investment and expertise, the benefits in product consistency and shelf life make it a preferred choice for carbonated drinks.
Note: When using isobaric filling, ensure your system has accurate pressure sensors and regulators to maintain optimal filling conditions and avoid product spoilage.
Vacuum filling uses a vacuum to pull liquid into containers. This method works by creating a pressure difference between the container and the liquid source. When the container is placed under vacuum, the lower pressure inside it draws the liquid in, filling the container smoothly and precisely.
This technique is especially useful for thick liquids or foaming products. It helps reduce bubbles and foam, which can spoil the product or cause inconsistent fills. Vacuum filling also minimizes oxidation by limiting air exposure, making it ideal for sensitive liquids like oils, spirits, or wines.
How Vacuum Filling Works:
A vacuum pump lowers the pressure inside the container.
The pressure difference causes liquid to flow from the reservoir into the container.
Filling stops automatically once the container reaches the desired level.
The vacuum is then released, and the container moves on for sealing or further processing.
There are two common types of vacuum filling:
Low Gravity Vacuum Filling: Uses a gentle vacuum to avoid splashing or turbulence. Perfect for delicate liquids like fine wines or spirits.
Full Vacuum Filling: Applies a stronger vacuum to quickly draw in liquid, suitable for thicker or more viscous products.
Applications for Thick and Foaming Liquids:
Vacuum filling is often used for:
Oils, such as olive oil or essential oils.
Sauces and syrups that tend to foam.
Spirits and wines where oxidation must be prevented.
Foaming liquids that require careful handling to avoid excess foam formation.
Benefits:
Reduces bubbles and foam during filling.
Minimizes oxidation, extending shelf life.
Achieves consistent fill levels, even in narrow-neck containers.
Suitable for a wide range of viscosities and delicate liquids.
Drawbacks:
Equipment can be more complex and costly than simpler filling methods.
Requires careful calibration to maintain vacuum levels and prevent overfilling.
Not ideal for highly carbonated beverages, as vacuum can cause loss of carbonation.
Maintenance of vacuum pumps and seals is essential to ensure reliability.
Vacuum filling offers a gentle yet efficient way to fill sensitive and viscous liquids. It balances precision and product integrity, making it a popular choice in food, beverage, and cosmetic industries.
Tip: Regularly check vacuum seals and pumps to maintain consistent vacuum pressure and avoid filling errors or product contamination.
Pressure filling uses positive pressure to force liquids into containers. Unlike atmospheric filling, which relies on gravity, this method pushes the product directly, making it ideal for thicker or semi-viscous liquids that don’t flow easily on their own.
The system applies controlled pressure to the liquid reservoir or directly into the filling chamber. This pressure forces the liquid through the filling nozzles and into the containers. The pressure level is adjusted depending on the liquid’s viscosity and the container type to ensure a smooth, consistent fill without splashing or foaming.
The filling valve opens once the container is positioned under the nozzle, allowing liquid to flow in. When the set volume is reached, the valve closes, and the container moves along the production line. Some pressure fillers use a timed fill or volumetric measurement to maintain accuracy.
Pressure filling suits products thicker than water but not extremely viscous. Examples include:
Syrups and concentrates
Sauces and dressings
Dairy products like yogurt and cream
Liquid soaps and detergents
Certain beverages with pulp or particulate content
Industries benefiting from pressure filling include food and beverage, cosmetics, pharmaceuticals, and household chemicals. It offers a reliable way to handle liquids that gravity filling struggles with, especially when product consistency and fill accuracy matter.
Pros:
Handles thicker liquids better than gravity filling
Reduces air pockets and foam formation during filling
Provides consistent fill volumes and speeds
Suitable for a range of container shapes and sizes
Can be integrated into automated production lines
Cons:
Equipment tends to be more complex and costly than simple gravity fillers
Requires precise pressure control to avoid overfilling or splashing
Not ideal for highly viscous or particulate-heavy products (where piston filling may be better)
Maintenance demands are higher due to pressure components and seals
May require more operator training to manage pressure settings effectively
In summary, pressure filling is a versatile method bridging the gap between simple gravity filling and more specialized techniques. It works best when you need to fill liquids thicker than water but not so thick that piston fillers become necessary.
Tip: Regularly calibrate pressure settings and inspect seals to maintain filling accuracy and prevent leaks or product waste on your line.

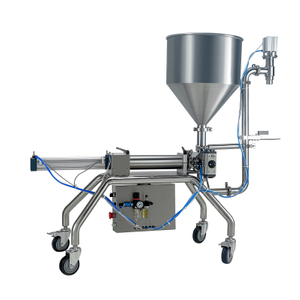

Piston filling is a popular method for handling high-viscosity liquids and products that contain particulates. It works by using a piston that moves inside a cylinder to draw a precise volume of liquid and then push it into the container. This volumetric approach ensures accuracy and consistency, making it ideal for products where exact fill amounts matter.
The piston filling machine operates in two main steps:
Draw Phase: The piston retracts, creating a vacuum that pulls the liquid product from a supply tank into the cylinder.
Dispense Phase: The piston moves forward, pushing the liquid out of the cylinder and into the container.
This cycle repeats for each container, delivering consistent volumes every time. The stroke length and speed can be adjusted to accommodate different fill volumes and product viscosities.
Piston filling excels at handling thick liquids like honey, creams, gels, pastes, and chunky sauces. These products often resist flow, so relying on gravity or pressure filling may cause inaccuracies or slow production. The mechanical action of the piston ensures the product moves efficiently, regardless of thickness.
The system can also handle products with particulates or suspended solids without clogging or damaging the filling mechanism. This adaptability makes piston fillers a versatile choice for many food, cosmetic, and pharmaceutical products.
Benefits:
High Accuracy: Volumetric filling provides precise control over fill volume, reducing product waste.
Versatility: Suitable for a wide range of viscosities, from thin creams to heavy pastes.
Gentle Handling: The piston mechanism minimizes product shear, protecting delicate textures.
Adjustable: Easy to change fill volumes and speeds to meet varying production needs.
Handles Particulates: Works well with chunky or particulate-containing products without clogging.
Limitations:
Slower Speeds: Compared to gravity or pressure filling, piston filling may have lower throughput, especially for very high-volume lines.
Complexity: More moving parts mean increased maintenance and potential downtime.
Cost: Typically more expensive than simpler filling methods due to mechanical complexity.
Not Ideal for Thin Liquids: Very low-viscosity liquids can be filled more efficiently by gravity or pressure methods.
Tip: Regularly inspect piston seals and cylinders to prevent leaks and maintain filling accuracy, especially when switching between products of different viscosities.
Overflow filling is a unique liquid filling method designed to ensure consistent visual fill levels in containers, especially those made of transparent materials. This technique focuses on appearance, making every bottle or container look uniformly filled, which is crucial for consumer appeal and brand consistency.
The overflow filling process works by filling the container until the liquid reaches a predetermined level. Instead of measuring volume precisely, the system lets excess liquid overflow back into the reservoir or collection system. This ensures that each container is filled to the same height, regardless of slight variations in container shape or volume.
Typically, the filling nozzle is designed to allow liquid to flow continuously until the container is full. Once the liquid reaches the overflow point, the excess drains away, preventing overfilling and spillage. The returned liquid is usually filtered and recycled to maintain efficiency and reduce waste.
Overflow filling is ideal for products where the visual presentation is a top priority. It is commonly used in industries such as:
Beverages: Water, clear juices, and other transparent drinks benefit from a uniform fill level that enhances shelf appeal.
Personal Care: Shampoos, conditioners, and liquid soaps in clear bottles use overflow filling to ensure neat, consistent fills.
Household Cleaners: Products like detergents and surface cleaners often require precise visual fill levels to meet customer expectations.
Pharmaceuticals and Cosmetics: Transparent containers for lotions, toners, or serums rely on this method to maintain consistent appearance.
This method is particularly beneficial when container shapes vary slightly due to manufacturing tolerances, as it compensates by focusing on the liquid level rather than volume.
Advantages:
Uniform Appearance: Guarantees consistent fill levels, enhancing product presentation.
Reduced Product Waste: Excess liquid is collected and recycled, minimizing loss.
Simple Operation: Overflow fillers have fewer moving parts and are easier to maintain.
Ideal for Transparent Containers: Ensures that the product looks full and attractive on shelves.
Disadvantages:
Not Volume-Precise: This method prioritizes visual level over exact volume, which may not suit products requiring strict dosage.
Limited to Low-Viscosity Liquids: Works best for thin liquids that flow easily and overflow smoothly.
Potential for Contamination: If not properly managed, returned liquid could risk contamination.
Less Suitable for Opaque Containers: Visual fill consistency is less impactful when containers are not clear.
Tip: When using overflow filling, ensure your system includes effective filtration and recycling mechanisms to maintain product hygiene and minimize waste during the overflow return process.
Selecting the proper liquid filling method depends on several important factors. Understanding these helps improve production efficiency, maintain product quality, and reduce waste.
Viscosity: Thin liquids like water or juice flow easily and work well with atmospheric or overflow filling. Thicker liquids, such as creams or syrups, need piston or pressure filling for accurate, smooth fills.
Carbonation: Carbonated beverages require isobaric filling to keep bubbles inside and prevent foaming or CO2 loss.
Container Type: Narrow-neck bottles benefit from vacuum filling to avoid air pockets. Transparent containers often require overflow filling to ensure consistent, attractive fill levels.
Each product's physical characteristics and packaging design influence which filling method fits best.
Choosing the right method affects speed, accuracy, and product integrity. For example, piston filling offers precise volume control but may run slower than gravity filling. Isobaric filling preserves carbonation but needs more complex equipment and controls.
Incorrect method selection can lead to:
Product loss due to foaming or overflow
Inconsistent fill volumes causing customer dissatisfaction
Increased downtime from machine adjustments or maintenance
Balancing speed and accuracy ensures smooth production and high-quality output.
Match the method to your liquid: Know your product’s flow properties and sensitivity. For instance, avoid vacuum filling for carbonated drinks to preserve fizz.
Consider container shape and material: Use overflow filling for clear bottles to maintain visual appeal.
Evaluate production volume: High-speed lines may require automatic piston or pressure fillers, while smaller batches can use semi-automatic or gravity fillers.
Plan for future growth: Choose flexible machines that can handle product changes or increased output.
Consult with suppliers: They can provide insights on the best technology fit and maintenance needs.
Tip: Always test your product with different filling methods in a pilot run to identify the best balance of speed, accuracy, and product quality before finalizing your choice.
Liquid filling methods like atmospheric, isobaric, vacuum, pressure, piston, and overflow each serve unique purposes in packaging. They cater to diverse liquid types, ensuring efficient and precise filling. Choosing the right method enhances production quality and efficiency. DFPACK offers solutions that align with these methods, providing versatile and reliable packaging systems. Their expertise ensures optimal packaging performance, meeting the diverse needs of various industries.
A: A Liquid Filling Machine is used to accurately and efficiently fill containers with liquids, ranging from water to thick creams, ensuring consistent volume and minimal waste.
A: An atmospheric Liquid Filling Machine relies on gravity to fill containers with thin, still liquids, like water or juice, making it cost-effective and easy to maintain.
A: Isobaric filling maintains carbonation and minimizes foaming, preserving the beverage's quality and extending shelf life.
A: Piston Liquid Filling Machines offer high accuracy for thick liquids and products with particulates, ensuring precise fill volumes and consistency.
A: Regular maintenance, checking seals and pressure settings, and ensuring proper calibration can help troubleshoot common issues in a Liquid Filling Machine.
