PFS-600
DFPACK
Meat, Seafood, Cooked Food, Fruits and Vegetables, Baking, Granules, Liquids, Powders, Medical Equipment, Hardware
Pouch
Sealing
Low
The entire machine is made of aluminum, providing durability and better heat dissipation.
Allows for hands-free operation by holding the product with your hands while using the foot pedal for sealing.
Features instant heating, with each sealing cycle taking only 1-3 seconds.

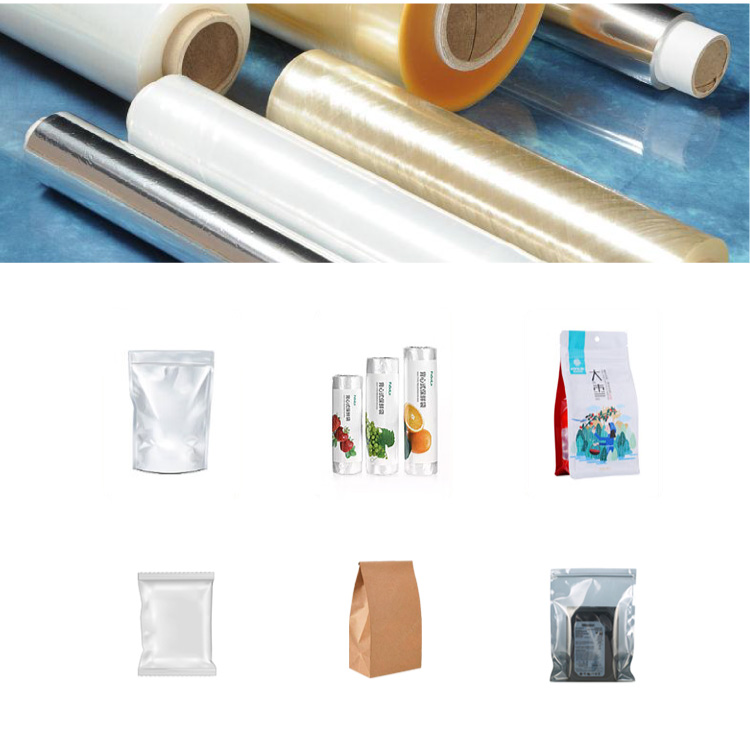

Compatible with various packaging materials such as PP and PE.

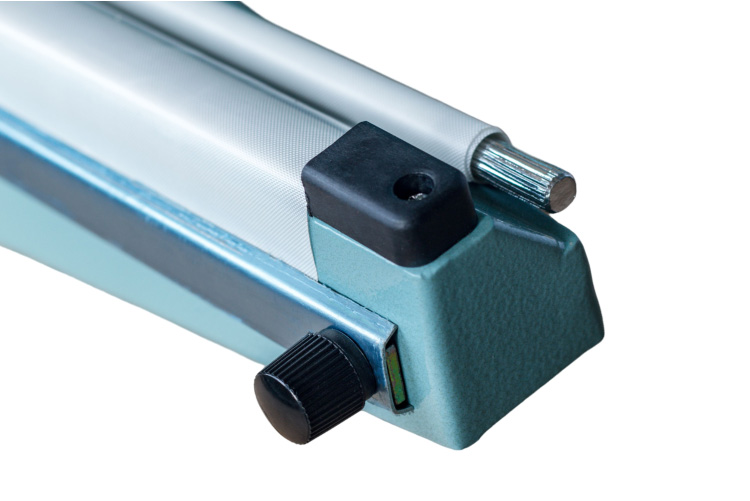

Seal bars and Teflon-coated cloth are easy to replace.
The Foot Pedal Sealer is a versatile and easy-to-operate heat-sealing machine tailored for various packaging tasks. Its foot pedal mechanism allows hands-free operation, simplifying the sealing process while boosting productivity. This machine produces tight and reliable seals, ensuring product protection and packaging durability. Suitable for food packaging, industrial sealing, and retail applications, it is an excellent solution for small-scale enterprises and individual users.
The Foot Pedal Sealer is ideal for use in:
Food Industry: Packaging snacks, powders, dried goods, and liquid pouches.
Industrial Applications: Sealing tools, spare parts, and chemical products.
Retail and E-commerce: Wrapping daily necessities, promotional items, and lightweight products.The device is compatible with a wide range of materials, including plastic, aluminum foil, and laminated bags.
Simple Operation
Operated with a foot pedal, it offers a user-friendly experience, requiring minimal training to master.
Fast and Secure Sealing
Delivers consistent and strong seals quickly, ensuring airtight and leak-proof packaging.
Multi-Material Compatibility
Works with various packaging materials such as PE, PP, and composite materials to meet diverse sealing needs.
Robust Construction
Sturdy design with high-quality components ensures reliability and long-term use.
Budget-Friendly
Combines affordability with performance, making it a cost-effective choice for small businesses.
Compact Design
Lightweight and space-efficient, suitable for environments with limited workspace.
Model | PFS-600 |
| Voltage | 110/220V 50-60Hz |
| Pump Power | 1.5kw |
| Sealing Length | 23.6inch(600mm) |
| Sealing Width | 0.4 inch(10mm) |
| Max Seal Thickness | 0.05-0.9mm |
| Dimension | 31.5 x 21.3 x 9.8 inch (800x540x250mm) |
| Weight | 55.1 lb(25kgs) |
| Certification | CE ISO |

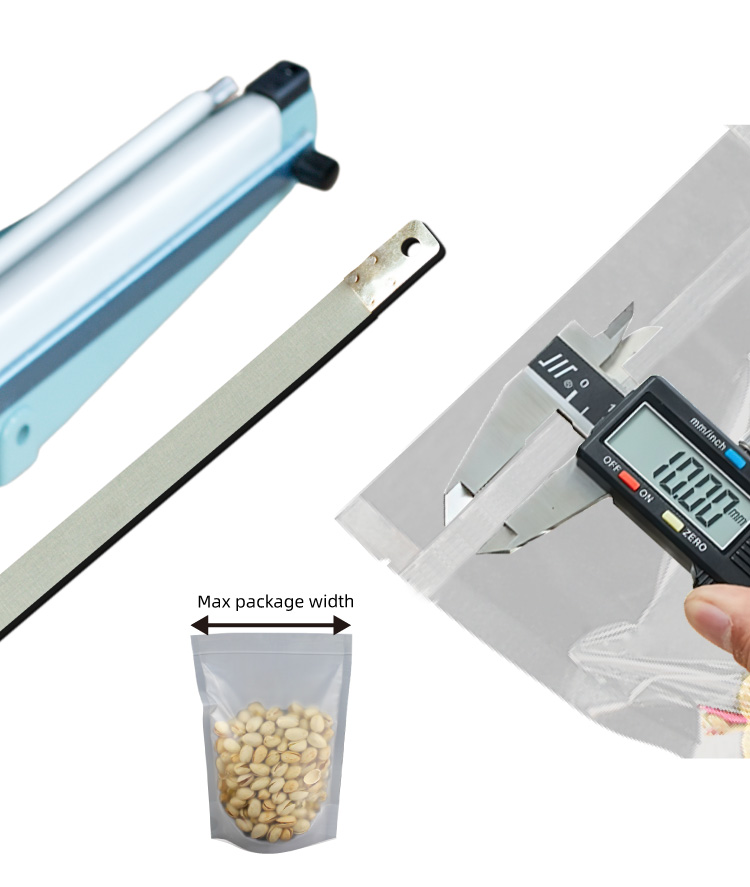

| Model | PFS-600 |
| Max package width | 22.8 inch(580mm) |
| Sealing width | 0.4 inch(10mm) |

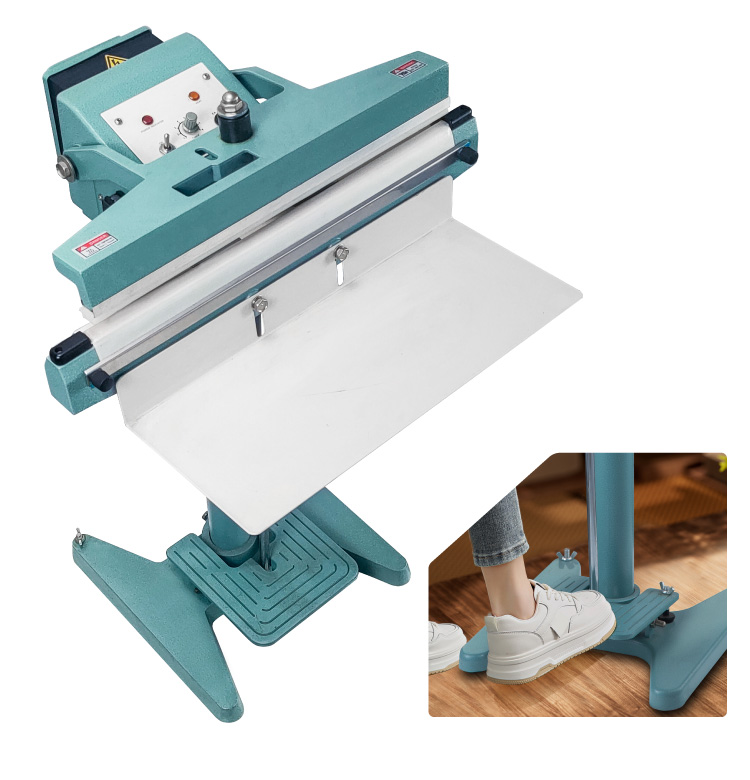

HAND-FOOT SYNC SEALING
Hands-load bags, foot-trigger seals—ergonomic design reduces fatigue during prolonged use

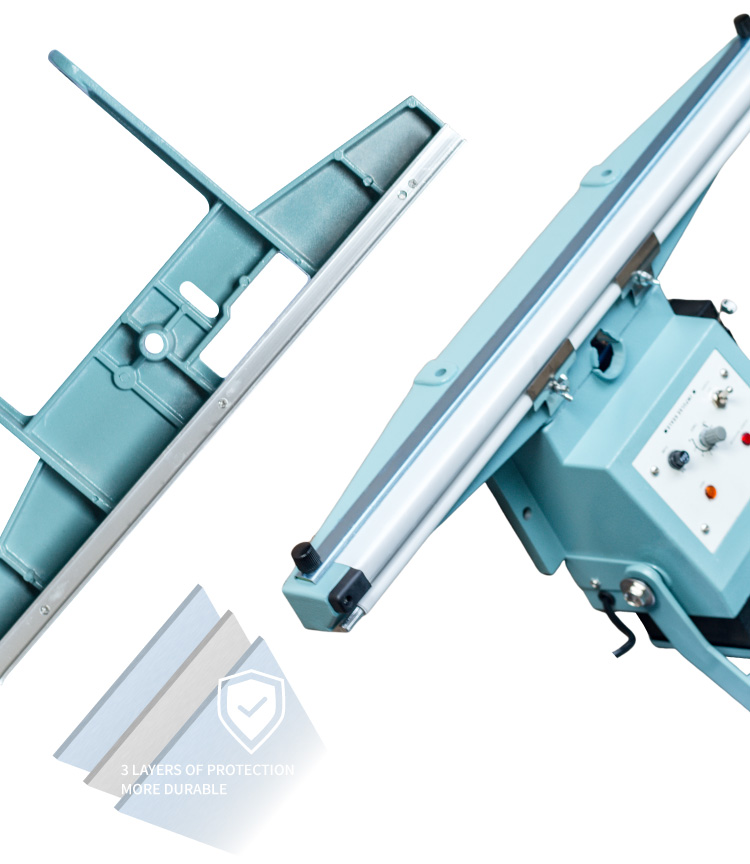

THE REINFORCED ALUMINUM CASE IS ROBUST AND DURABLE
Premium thickened aluminum alloy body For the pursuit of quality customers Provide a good choice Based on past customer feedback Maximum service life It can take up to 10 years
INSTANTANEOUS HEATING SEAL
Excellent performance heating wire The wider seal is stronger Whole roll of linoleum Break it a little, spread it a little Higher utilization rate High elastic silicone strip More uniform seal

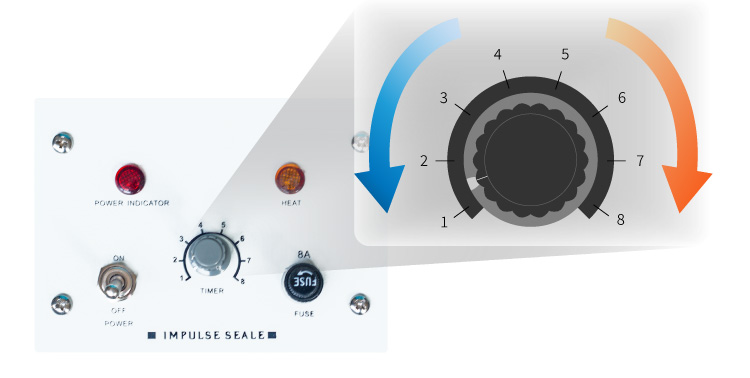

8-SPEED ADJUSTABLE SEALING SYSTEM FOR VERSATILE BAG THICKNESS
Precision-Temperature Control with Mature Mechanical Technology
AVIATION-GRADE ALUMINUM FRAME WITH ROCK-SOLID STABILITY
Precision-Temperature Control with Mature Mechanical Technology
ROLL-TO-USE OILCLOTH FOR PRECISE, WASTE-FREE APPLICATION
Unroll Only What You Need – Effortless, Economical Coating Control

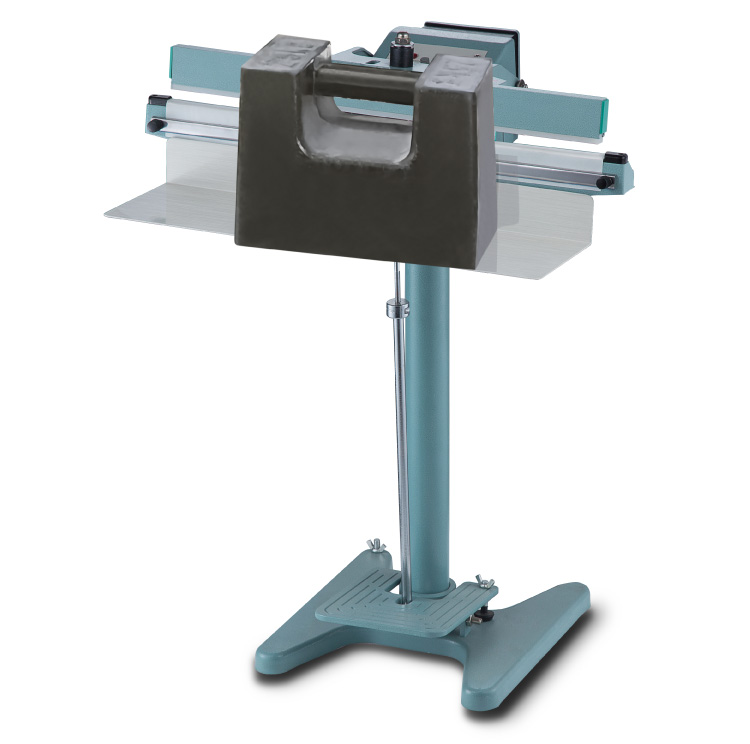

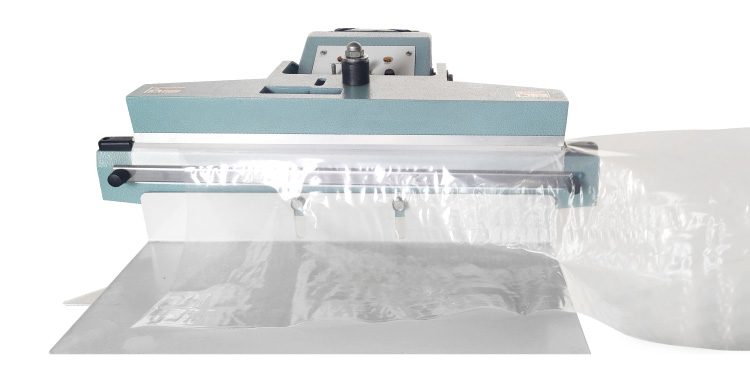

MULTI-SEAL FOOT-OPERATED BAG SEALER FOR LONG BAGS
Step-and-Seal Technology for Continuous, Adjustable Length Sealing

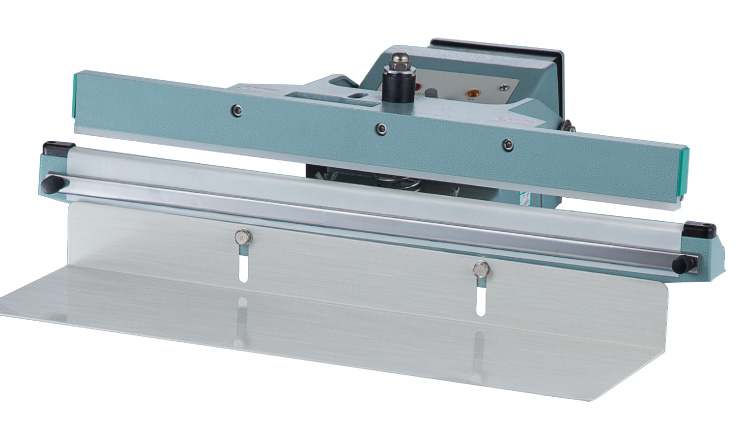

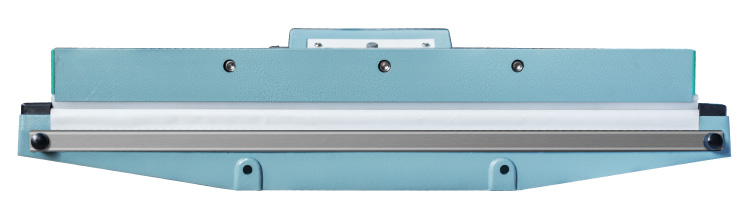

UNIFORMLY HEATED SEAL
The upper and lower brackets remain highly parallel Tight fit when pressed, seal evenly

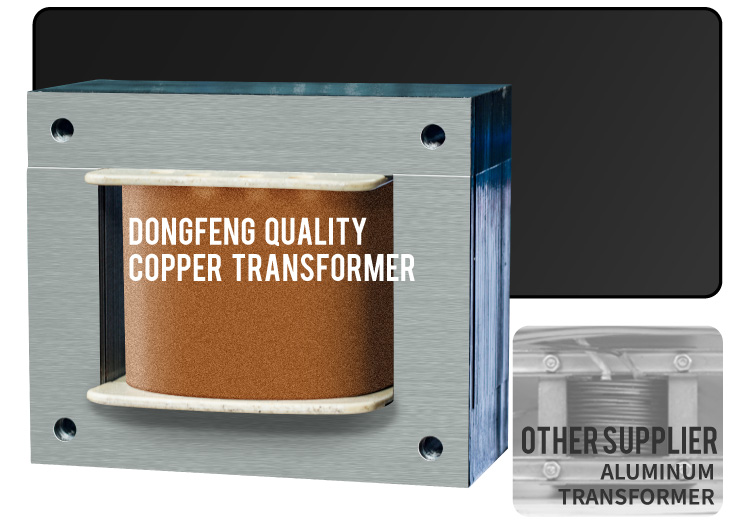

DONGFENG'S COPPER-CORE TRANSFORMERS
Dual pure-coil transformers ensure maximum conductivity + heat resistance for stable operation.vs Budget Aluminum Transformers Lower-cost machines use aluminum coils, increasing resistance and fatigue failure risk during continuous use.
| Copper wire transformer | What are the differences between copper and aluminum transformers | Aluminum wire transformer |
| strong | Electrical conductivity | weak |
| high | Fusing point | low |
| strong | Short-circuit resistance | weak |
| higher | Mechanical strength | lower |
| low | Electrical resistivity | Easy to increase |
APPLICATION
The PFS-600 Step sealer is suitable for sealing various heat-sealed packaging bags. The packaged products can be isolated, mold-proof, insect-proof, moisture-proof and can be kept fresh for a long time.

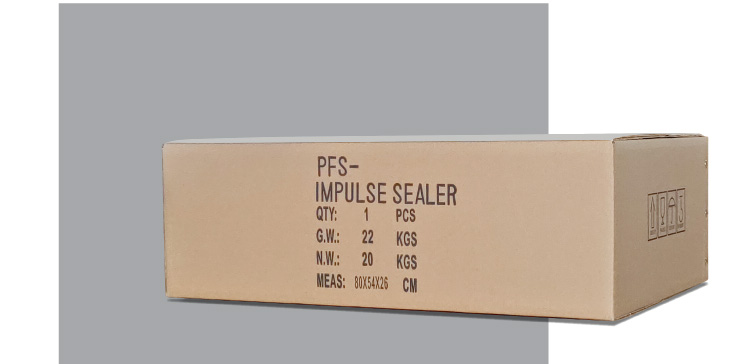

PACKAGING & SHIPPING
Your machine will be delivered by sea, air or express according to your needs.Before packaging, the goods are first wrapped with protective film to prevent scratches and corrosion, and then placed in wooden boxes for shipment.
OUT OF THE BOX
The PFS-600 Foot Pedal Impulse Sealer is designed for fast, stable, and convenient plastic bag sealing. With a foot pedal control system, operators can keep both hands on the bag while triggering the sealing process by foot. This makes the machine especially suitable for packaging tasks that require accurate bag positioning, wider sealing length, and repeated daily operation.
As a practical heat sealing machine, the PFS-600 uses heat and pressure to fuse the opening of heat-sealable bags, helping protect products from moisture, dust, leakage, and external contamination. If you want to learn more about the basic uses, types, and benefits of heat sealing equipment, you can read this guide:
What Is a Heat Sealer? Uses, Types, and Benefits for Industrial Packaging.
Compared with hand-operated sealing machines, the foot pedal structure improves operating comfort and packaging efficiency. The operator can use both hands to hold, flatten, and align the bag, while the foot pedal controls the sealing action. This helps create a straighter and more consistent seal, especially when sealing wider plastic bags or larger pouches.
The PFS-600 is suitable for low to medium production packaging needs. It is widely used for food packaging, retail packaging, hardware packaging, medical supplies, powders, granules, liquids, fruits, vegetables, seafood, cooked food, and other pouch-packed products.
Main advantages include:
Hands-free foot pedal operation for easier bag positioning
600mm sealing length for wider plastic bags and pouches
10mm sealing width for stronger and more reliable closure
Instant heating design with fast sealing efficiency
Suitable for PE, PP, composite bags, aluminum foil bags, and laminated packaging materials
Aluminum machine body for durability and better heat dissipation
Replaceable sealing bar and Teflon-coated cloth for easier maintenance
The PFS-600 works through impulse heating. When the operator places the bag opening on the sealing area and presses the foot pedal, the machine delivers a short burst of heat to the sealing wire. The heat melts the inner layer of the packaging film, while pressure helps the two sides of the bag bond together. After cooling, the bag forms a tight and secure seal.
Unlike continuous heat sealers that keep the sealing bar hot all the time, an impulse sealer only heats during the sealing cycle. This helps reduce unnecessary energy consumption and makes the machine safer and more efficient for repeated sealing work. To better understand the structure and working principle of impulse sealing equipment, you can read:
Impulse Sealers: What Are They & How Do They Work?.
The PFS-600 Foot Pedal Impulse Sealer is a flexible sealing solution for different packaging environments. It can be used in small workshops, food processing rooms, retail packaging areas, e-commerce packing stations, factories, warehouses, and commercial packaging lines.
Typical applications include:
Food packaging: snacks, dried goods, bakery products, seafood, cooked food, fruits, vegetables, powders, granules, and liquid pouches
Industrial packaging: tools, spare parts, hardware, accessories, and chemical product bags
Retail and e-commerce packaging: daily goods, promotional products, lightweight products, and protective pouch packaging
Medical and clean packaging: medical equipment, supplies, and products requiring secure bag closure
The PFS-600 Foot Pedal Impulse Sealer combines simple operation, fast sealing speed, and stable sealing performance. Its pedal control design reduces hand fatigue, while the wide sealing bar supports larger bags and improves packaging efficiency.
For businesses looking for a cost-effective plastic bag sealing machine, this semi-automatic pedal step sealer is a practical choice. It helps improve packaging consistency, strengthen product protection, and create a cleaner, more professional package appearance.
