An impulse sealer is a specialized packaging device designed to fuse thermoplastic sheets or bags together by delivering a high-intensity, short-duration electrical current through a resistive heating element only during the compression phase of the sealing cycle. This design ensures that the heating wire cools down instantly after the impulse terminates, allowing the melted plastic material to solidify securely under mechanical pressure without continuous energy utilization.
Understanding the intricate technical variations between different heat-sealing architectures allows production facilities to optimize their line efficiency and lower total operational costs. In the following sections, we will explore the precise structural components, electrical characteristics, thermal performance profiles, and safety standards that govern the utilization of an impulse sealer in competitive industrial applications. Through careful technical analysis, manufacturers can make highly informed equipment acquisitions tailored precisely to their specific material thicknesses and throughput targets.
To provide a clear structural overview of the comprehensive analysis detailed below, the following conceptual summary outlines the core operational phases and architectural attributes evaluated within this technical text.

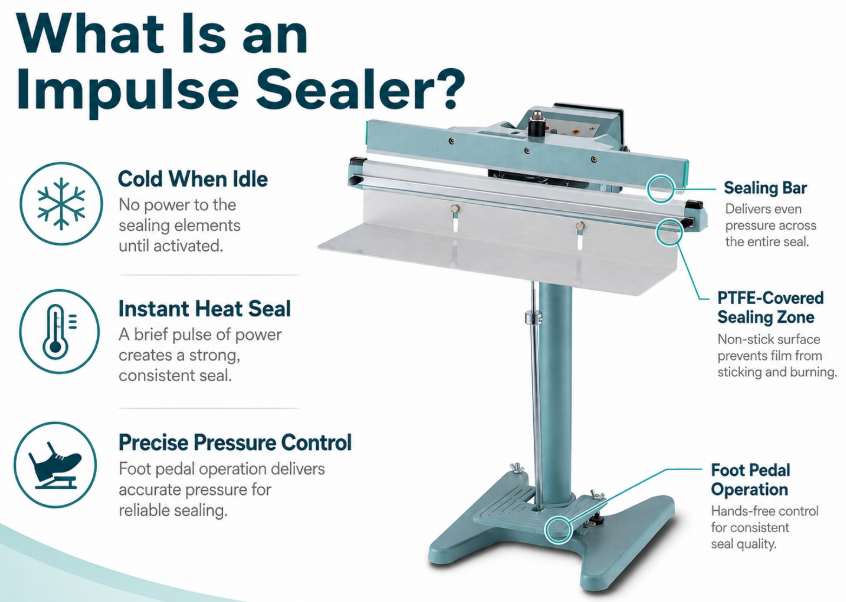

An impulse sealer is an advanced packaging machine that utilizes an engineered nichrome ribbon or wire to apply instantaneous thermal energy and simultaneous mechanical force to thermoplastic substrates, initiating structural bonding exclusively when mechanical jaws are actively compressed.
The primary architectural attribute of an impulse sealer is its reliance on intermittent electrical activation rather than continuous thermal maintenance. In standard factory settings, the machinery remains completely cold when not in active operation. The core assembly consists of a structural frame, an upper clamping jaw equipped with a resilient silicone pressure pad, a lower stationary jaw embedding a high-resistance heating element, and a precise electronic control circuit containing an adjustable timer relay. When an operator activates the machine via a lever, handle, or automated pneumatic cylinder, the control circuit fires a calibrated pulse of high-amperage electricity directly through the heating element, converting electrical energy into precise thermal energy within milliseconds.
This distinct on-demand heating capability eliminates the need for lengthy warm-up cycles, vastly improving operational flexibility in dynamic manufacturing facilities. The heating element is typically insulated from the underlying metal chassis by a heat-resistant layer of polyimide or mica film, while a high-temperature woven fiberglass fabric coated with polytetrafluoroethylene (PTFE) covers the upper surface of the heating element. This critical PTFE layer prevents the molten thermoplastic packaging film from adhering to the heating element during the thermal transition, ensuring clean releases and preserving the aesthetic uniformity of the resulting seal joint.
Furthermore, an impulse sealer can be configured in various structural formats to align with distinct plant floor requirements and production volumes. For heavy-duty industrial environments processing high volumes of bulky poly bags, heavy bags, or laminated structures, a specialized foot-pedal operated platform is exceptionally advantageous. Implementing high-performance hardware such as a wholesale foot pedal impulse sealer allows manual operators to use both hands for precise package alignment, significantly increasing the hourly throughput of the sealing station while maintaining absolute control over the structural joint placement.
No, impulse sealers and constant heat sealers are fundamentally distinct subsets within the broader heat-sealing machinery category, differentiated primarily by their thermal delivery profiles, energy consumption characteristics, and mechanical cooling requirements.
To fully appreciate the distinction, one must evaluate the operational paradigm of continuous or constant heat sealers. A constant heat sealer keeps its sealing jaws at a uniform, elevated pre-set temperature throughout the entire duration of the production shift. This continuous thermal state is maintained via cartridge heaters embedded within heavy brass or aluminum bars, governed by a proportional-integral-derivative (PID) temperature controller. While this mechanism is excellent for thick, high-melting-point laminated barrier materials, foil structures, and gusseted pouches that require deep, continuous thermal penetration, it introduces considerable thermal management challenges, long pre-heating wait times, and high standby power utility costs.
Conversely, an impulse sealer draws zero electrical current during its standby state, providing substantial energy efficiency benefits over multi-shift factory runs. Because the thermal energy is generated in a brief, controlled burst, the surrounding metallic structural components do not suffer from continuous thermal fatigue, and the machine remains cool to the touch except during the exact moment of seal execution. This intermittent operation makes an impulse sealer exceptionally well-suited for single-layer polymers like polyethylene and polypropylene, which can distort or burn if subjected to the unrelenting heat of a constant-temperature sealing jaw.
The technical trade-offs between these two dominant sealing methodologies can be systematically categorized based on several key operational parameters, as outlined in the comparative analytical matrix below.
An impulse sealer is primarily utilized for the hermetic closure of thin to medium-gauge thermoplastic materials, including low-density polyethylene, polypropylene, polyolefin, polyvinyl chloride, and various lightweight co-extruded films across diverse industrial packaging sectors.
The operational versatility of an impulse sealer allows it to serve a vast array of B2B market verticals. In the agricultural and horticultural sectors, these machines are regularly deployed to securely seal bulk soil mixtures, chemical fertilizers, and biological materials into thick poly bags. The clean, instant bonding action ensures that fine dust particles or moisture present in the packaging environment do not compromise the machine's ability to create a secure weld, provided the sealing parameters are correctly calibrated for the specific film thickness.
In electronic component manufacturing, electrostatic discharge (ESD) protective bags, anti-static poly shields, and moisture-barrier bags must be sealed with absolute precision to protect sensitive microprocessors and circuit assemblies from atmospheric degradation. An impulse sealer provides the fine-grained thermal control required to melt the inner sealant layer of an anti-static pouch without degrading the external conductive or dissipative shielding layers, ensuring compliance with strict international electronics preservation protocols.
For operations focused on medium-to-high volume manual processing of diverse bag sizes and material configurations, specialized vertically-oriented mechanical configurations offer significant ergonomic and space-saving advantages. Integrating a heavy-duty pedal vertical impulse plastic bag sealer enables processing lines to manage tall, liquid-filled, or unstable granular packages vertically, completely preventing accidental spills during the positioning and clamping phases while maintaining high structural joint integrity.
Companies heat-seal packages to establish an unbroken, tamper-evident, and structurally resilient hermetic barrier that protects the enclosed contents from moisture ingress, oxidation, biological contamination, and physical degradation during multi-modal logistical transits.
From an economic standpoint, heat sealing provides an exceptionally cost-effective closure method compared to mechanical fasteners, chemical adhesives, or adhesive tapes. Tapes and adhesives introduce foreign chemical compounds into the packaging stack, which can degrade over time when exposed to UV radiation or extreme storage temperatures. Heat sealing, by contrast, relies purely on the phase transformation of the existing packaging substrate, melting the molecules of the bag material together to form a unified, homogeneous bond that matches or exceeds the tensile strength of the parent film itself.
Furthermore, regulatory compliance in food processing and medical device manufacturing mandates strict barrier performance that can only be reliably achieved through professional heat-sealing systems. For medical devices, maintaining an absolute sterile barrier path up to the exact point of clinical use is a strict legal requirement. A properly calibrated impulse sealer guarantees that no micro-perforations or cold spots exist along the seal line, preventing microscopic pathogens or airborne contaminants from compromising the clean status of surgical instruments or pharmaceutical supplies.
In consumer goods marketing, the aesthetic consistency and tamper-evidence provided by a clean heat seal enhance brand trust and customer satisfaction. When a package arrives at the end-user with a clean, flawless weld line, it provides visual confirmation that the contents have remained completely undisturbed since leaving the manufacturer's quality control station. This level of security minimizes costly product returns and legal liabilities associated with product tampering or environmental spoilage during distribution.
An impulse sealer heats up by routing a high-amperage electrical current through a low-mass, high-resistance nickel-chromium alloy ribbon, exploiting the physical principle of Joule heating to achieve the target polymer melting temperature within a fraction of a second.
The underlying physics of this process rely on the specific electrical resistance properties of the heating element material. Nichrome ribbons are selected for impulse sealer applications due to their high electrical resistivity, outstanding oxidation resistance at elevated temperatures, and exceptionally low thermal expansion coefficient. When the machine's mechanical clamping switch is closed, an integrated step-down transformer instantly drops the high-voltage mains electricity down to a safe, low-voltage, high-current electrical state, directing this energy flow straight through the exposed nichrome ribbon.
The mathematical relationship governing this thermal energy generation is expressed by Joule's First Law:
Q = I⊃2;Rt
Where Q represents the generated thermal energy, I denotes the electrical current flowing through the circuit, R is the specific electrical resistance of the nichrome alloy ribbon, and t is the precise duration of the electrical impulse pulse. Because the current parameter is squared within this physical equation, even modest increases in the amperage output yield substantial gains in thermal energy generation, allowing the ribbon to transition from ambient factory temperature to over 150 degrees Celsius almost instantaneously.
Managing this rapid thermal transition requires sophisticated electronic control. The heating duration is precisely metered by an adjustable solid-state potentiometer or a digital micro-controller timing circuit. Operators can adjust the heating time down to hundredths of a second, tuning the energy delivery to match the specific thermal mass and thickness of the film being processed. This level of precision prevents overheating, which can sever the film, while ensuring adequate thermal transfer to fully liquefy the polymer interfaces.
Impulse sealers melt the packaging material by transferring intense surface conductive heat from the activated nichrome element directly through the protective PTFE cloth layer into the overlapping thermoplastic film layers, causing the polymer chains to lose their crystalline arrangement and intermix.
When thermoplastic materials like polyethylene are subjected to temperatures exceeding their specific melting threshold, the intermolecular van der Waals forces holding the polymer chains in a rigid, ordered crystalline matrix begin to weaken rapidly. This thermal transition shifts the plastic from a solid state to an amorphous, highly viscous liquid state. As the mechanical jaws of the impulse sealer maintain a steady downward clamping force during this liquid phase, the polymer chains from the two separate film layers physically diffuse across the interface, intertwining and cross-linking at a molecular level.
To ensure a flawless molecular fusion without structural thin spots, the mechanical pressure must be distributed evenly across the entire length of the sealing line. This is achieved via a resilient, high-durometer silicone rubber pad mounted on the opposing jaw of the machine. The silicone pad compresses slightly under mechanical load, absorbing minor variances in film thickness or wrinkles and forcing the molten plastic interfaces into absolute physical contact. This compression eliminates trapped air pockets or micro-voids that could otherwise form weak points within the finished seal joint.
The thickness of the sealing wire or ribbon also directly dictates the structural profile and mechanical characteristics of the resulting joint. Manufacturers can select flat wire elements ranging from 2mm to 10mm in width depending on the burst-strength requirements of the package, or they can choose round cut-wire configurations. Round wires simultaneously melt, seal, and sever the excess film material in a single mechanical action, providing a highly efficient trimmed finish for poly-bagting and custom-sized shrink wrapping operations.
Immediately following the termination of the electrical heating pulse, the package undergoes a critical dwell and cooling phase under mechanical pressure, allowing the intermixed polymer chains to recrystallize and regain full structural tensile strength before the jaws open.
This post-heating cooling phase, often referred to as the dwell time, is a critical step in achieving maximum seal strength. While the electrical impulse may only last for 1 to 2 seconds, the mechanical jaws are purposely held closed for an additional brief period. Because the low-mass nichrome ribbon is backed by a substantial metal jaw chassis that acts as an integrated heat sink, thermal energy is rapidly drawn away from the sealing zone once the electrical current cuts off. This rapid cooling action causes the amorphous, molten polymer mix to solidify quickly, locking the diffused molecular chains into a new, single, unified structural matrix.
If the mechanical clamping force is released prematurely before this cooling phase is complete, the polymer will still be in a semi-molten, low-tensile state. Under the natural internal pressure of the bag's contents or the spring-back tension of the plastic film, the uncooled joint can easily pull apart, leading to partial separation or complete seal failure. By enforcing a strict cooling-under-pressure cycle, an impulse sealer ensures that every package achieves its maximum theoretical burst strength prior to handling.
Once the cycle finishes and the jaws automatically or manually open, the completed seal is cool to the touch and can immediately enter the secondary stages of the logistics chain. The package can be dropped directly onto a fast-moving take-away conveyor, packed into master corrugated shipping cartons, or fed into a high-speed shrink tunnel without any risk of the seal splitting open or distorting under mechanical strain. This immediate structural readiness allows facilities to maintain exceptional operational velocities without bottlenecking at the terminal sealing station.
Yes, impulse sealers are recognized as exceptionally safe industrial packaging machines because their heating elements are only energized during active mechanical compression, minimizing operator burn risks and reducing electrical hazards in busy production environments.
The safety profile of impulse sealing technology is fundamentally superior to that of constant-heat sealing systems. In a constant-heat setup, the sealing bars remain continuously at temperatures often exceeding 200 degrees Celsius, posing a constant burn hazard to operators during bag alignment, maintenance, or clearing jams. An impulse sealer, by contrast, remains entirely at ambient room temperature during all loading and unloading steps. An accidental touch to the sealing jaw while the machine is at rest carries zero risk of thermal injury, significantly lowering workplace incident rates and reducing corporate insurance liabilities.
From an electrical safety perspective, the internal control transformer isolates the operator from high-voltage line currents. The energy delivered directly to the exposed nichrome ribbon is converted into a low-voltage (typically between 12V and 24V), high-amperage format. This low operating voltage eliminates the risk of severe electrical shocks even if the protective PTFE fabric layer becomes worn or damaged through long-term operation, providing an engineered layer of safety for manual assembly line personnel.
To maximize the operational lifespan and safety of these units, factories should implement a proactive, scheduled preventative maintenance protocol. The core wearable components are easily monitored and replaced using standard, pre-packaged consumable kits, ensuring consistent machine performance and absolute workplace safety as detailed in the maintenance guideline below.
PTFE Fabric Inspection: Routinely check the upper and lower polytetrafluoroethylene protective cloths for signs of structural discoloration, localized burning, or physical tearing. Worn PTFE fabric must be replaced immediately to prevent the molten plastic film from contacting the underlying heating element, which can cause substrate sticking and uneven thermal seals.
Heating Element Testing: Visually inspect the nichrome ribbon for signs of physical thinning, distortion, or carbon build-up. Ensure that the mounting spring clips at both terminals retain proper mechanical tension; proper tension allows the ribbon to expand and contract smoothly during rapid thermal cycles without breaking.
Silicone Pressure Pad Evaluation: Check the opposing jaw's silicone rubber pressure strip for physical indentations, cracks, or embedded debris. A smooth, resilient silicone surface is essential for ensuring completely uniform mechanical pressure distribution along the entire length of the active sealing zone.
In conclusion, the impulse sealer represents an incredibly efficient, reliable, and energy-conscious technology for contemporary industrial B2B packaging operations across various product markets.
By leveraging the physical advantages of Joulean resistance heating, these versatile machines deliver precise thermal energy exactly when and where it is required, eliminating continuous power draw and optimizing factory energy footprints. The strict integration of an automated cooling-under-pressure phase guarantees outstanding joint seal integrity and high burst-strength metrics, making the technology an indispensable asset for facilities tasked with preparing goods for rigorous global distribution networks.
For operations looking to scale their production throughput while maintaining high safety standards, selecting the appropriate hardware configuration is essential. Investing in robust, high-performance sealing equipment from specialized manufacturing sites such as packingmachine.com ensures that your facility benefits from heavy-duty construction, precise electronic timing controls, and optimized power transformers capable of handling demanding multi-shift production cycles with absolute consistency.
