Using a Cling Film Packaging Machine involves a structured process of machine preparation, film loading, precise manual or automatic wrapping over a tray, clean thermal cutting, and heat-pad shrinking to create a pristine, airtight seal around food products.
This comprehensive operational guide will walk you through the precise steps required to operate, maintain, and optimize your wrapping hardware for maximum shelf life and visual appeal. From initial calibration to routine sanitation, mastering this machinery ensures your packaging pipeline remains fast, safe, and highly cost-effective.
Section | Summary |
|---|---|
Step 1: Prepare the Machine and Load Cling Film | Learn how to safely mount the plastic film roll, thread it through the tension rollers, and preheat the internal thermal cutting components. |
Step 2: Load Food Products and Start Wrapping | Discover the precise technical movements needed to stretch film over trays smoothly, activate the heating blade, and utilize the shrinking plate. |
Step 3: Inspect Wrapped Food and Ensure Quality | Establish an inspection checklist to catch loose film, incomplete seals, or trapped moisture before products reach retail shelves. |
Step 4: Clean and Maintain the Machine | Master the daily sanitation protocols and component maintenance required to extend the service life of your industrial packaging equipment. |
Final Thoughts | Review a summary of best practices for maximizing throughput and maintaining workplace safety standard compliance. |
Preparing your Cling Film Packaging Machine requires securely positioning the film roll on its support shafts, threading the plastic precisely through the tension rollers, and allowing the thermal cutting blade to reach its optimal operational temperature.
Before processing any food items, safety and precision must be established at the workstation. Begin by ensuring the machine is placed on a flat, stable, slip-resistant surface with adequate clearance on all sides for the operator. Inspect the power cord for any signs of wear and connect the unit to a grounded electrical outlet. Once powered on, set the temperature controllers for both the hot cutting bridge and the bottom heating plate based on the thickness of the film you are using. Most standard PVC or PE films require a brief preheating period of roughly five to ten minutes to reach an efficient cutting threshold.
Proper film installation is critical to prevent binding or tearing during high-speed packaging runs. Lift the film holding rollers and place a fresh, commercial-grade roll onto the dual support shafts. It is vital to orient the roll so that the film unrolls from the back or bottom, depending on your specific model layout, ensuring the sticky or static side faces the correct direction for tray contact. For a deeper understanding of material selection, you can read about what is the use of cling film for packaging to see how different film types interact with heating elements.
Once the roll is seated, pull the leading edge of the film and thread it carefully through the tension guide bars. These bars regulate the pull-force, preventing the film from bunching up or pulling unevenly. Pull out a sufficient leader of film past the cutting edge to serve as your starting handle.
Check the cutting blade area for any residual plastic buildup from previous shifts before turning on the heating element.
Ensure the tension springs on the roll carriers are adjusted equally on both the left and right sides to avoid skewed tracking.
Test the manual feed by pulling a short section of film across the work deck to confirm it unrolls smoothly without binding.
Executing the wrapping process involves placing the food tray firmly on the workspace, pulling the stretched film tightly over the top of the product, tucking it underneath, and pressing the tray onto the heated plate to fuse the loose film edges.
With the machine fully preheated and calibrated, the actual packaging cycle can commence. Place your fresh produce, meats, or cheeses securely inside a compatible foam, pulp, or plastic tray. Hold the tray with both hands and place it in the center of the mechanical working platform directly in front of the extended film sheet. Grasp the leading edge of the film, pull it forward smoothly over the top of the food item, and ensure complete coverage with an extra two to three inches of overhang on all sides.
Pull the tray toward your body while maintaining downward tension on the film. This motion stretches the plastic tightly across the contours of the food, eliminating wrinkles and removing excess pockets of trapped air. Press the film down onto the heated cutting wire or hidden blade assembly to cleanly sever the sheet from the main roll. To achieve an industrial-grade finish, utilizing a specialized Cling Film Packaging Machine simplifies these motions by combining the stretching and cutting actions into a unified fluid workflow.
Immediately after cutting, tuck the excess loose film flaps underneath the bottom of the tray. While holding these folds securely in place, press the entire base of the tray firmly onto the non-stick heated Teflon plate for one to two seconds. The radiant heat instantly shrinks and welds the overlapping plastic layers together, forming a flat, durable, and highly secure baseline seal.
Operational Parameter | Manual Wrapper Systems | Semi-Automatic Machinery |
|---|---|---|
Film Tension Control | Governed completely by operator hand strength | Regulated by mechanical brake clutches |
Throughput Speed | Variable, typically 5 to 8 packs per minute | Consistent, reaching 15 to 25 packs per minute |
Sealing Consistency | Dependent on manual dwell time and pressure | Controlled by automated timers and plates |
Labor Fatigue Level | High over extended multi-hour operational shifts | Low, requiring only product loading and unloading |
Quality inspection requires a rigorous visual and physical check of every finished package to confirm that the film layer is completely puncture-free, tightly stretched without distorting the food, and perfectly fused on the underside.
A pristine wrap is critical not only for aesthetics on the retail floor but also for product safety and regulatory compliance. Immediately after lifting the tray off the heating plate, check the top surface for high clarity. The film should look almost invisible over the food items. If the film appears loose, wrinkled, or saggy, it indicates insufficient stretching during the pulling phase or an inadequate dwell time on the bottom shrinking plate.

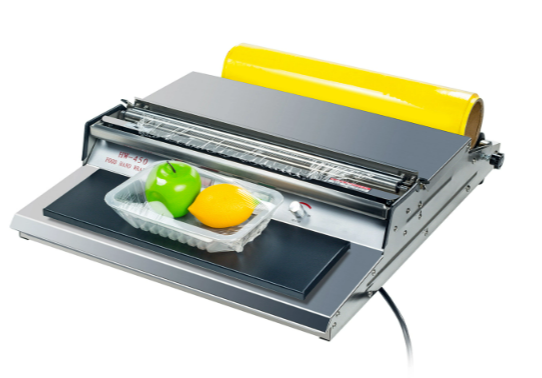

Turn the package over to evaluate the base weld. The overlapping plastic should form a cohesive, flattened mass without any open gaps or loose flaps that could unravel during shipping. If you observe gaps, increase the operational temperature of the hot plate slightly or hold the tray down with more uniform downward pressure. For businesses processing diverse product lines ranging from delicate fruits to heavy cuts of meat, upgrading to a specialized unit like the HW-450 Plastic Container Cling Film Machine provides the precise temperature modulation required to handle varying tray depths and material characteristics without burning through thin films.
Be vigilant regarding structural anomalies such as punctures caused by sharp bone edges or overfilled product profiles. Any compromised seal exposes the interior contents to ambient oxygen and airborne contaminants, accelerating spoilage and defeating the primary purpose of utilizing your commercial Cling Film Wrapping Machines.
Wrinkled Top Film Surface: Increase your manual pulling force or adjust the mechanical tension control knob clockwise to increase spool resistance.
Burned Holes in Bottom Plastic: Lower the temperature of the bottom heating plate or decrease the time the tray spends sitting on the hot pad.
Film Fails to Cut Cleanly: Check if the cutting wire is completely clean; if it is clear of debris, increase the cutting zone temperature setting.
Maintaining a wrapping unit involves turning off all heating elements, waiting for components to cool completely, and using non-abrasive tools to remove plastic residues and sanitize all food-contact surfaces.
Daily sanitation is a mandatory practice for any machinery operating within food production spaces. At the conclusion of every production shift, switch off the main power controls and disconnect the machine from the electrical grid. Allow the cutting element and the bottom sealing plate to cool down to safe ambient temperatures to prevent severe burns during the cleaning process. Never use metal scrapers, steel wool, or abrasive scouring pads on any part of the machine, as these tools will permanently damage the delicate non-stick Teflon coatings.
Use a plastic scraper or a stiff nylon brush to gently dislodge any caramelized plastic film residue from the cutting wire or hot plate area. Wipe down the stainless steel chassis, product trays, and film rollers using a soft cloth dampened with a mild, food-safe sanitizing solution. Avoid spraying liquids directly into electronic control housings or ventilation slots to prevent internal short circuits.
Regular mechanical maintenance is equally vital to keep your Cling Film Packaging Machine running at peak efficiency over years of heavy use. Periodically check the mechanical alignment of the film roll shafts and apply a food-grade silicone lubricant to any rotating bearings or spring assemblies if you notice squeaking or increased physical resistance.
Shift End: Wipe down the product handling deck with a food-safe degreaser and check the cutting element for plastic buildup.
Weekly Close: Clean the film tension rollers thoroughly to remove accumulated adhesive dust and static buildup.
Monthly Review: Inspect the condition of the electrical heating elements and verify that internal temperature readouts match actual plate surfaces using an infrared thermometer.
Adopting a systematic approach to operating your Cling Film Packaging Machine directly influences your facility's daily throughput, presentation standards, and bottom-line material costs. By establishing a rigid workflow that prioritizes proper machine calibration, precise manual tensioning, and proactive component maintenance, you can maximize your equipment investment while keeping waste to an absolute minimum.
When handling high volumes of fresh produce, meats, or deli items, choosing high-performance Cling Film Wrapping Machines engineered with reliable thermal controls ensures that every package leaving your line is perfectly sealed, highly professional, and ready to catch the customer's eye on the retail shelf. Keep this operational guide accessible at your packaging station to train new operators and maintain standard operating procedures across all shifts.
