Maintaining the peak performance of your packaging line requires attention to the components that endure the most stress. Among these, the seal wire is a critical consumable that dictates the quality, strength, and aesthetics of your product packaging.
Replacing seal wires on a shrink wrap machine involves disconnecting the power, removing the old wire from the tensioning blocks, cleaning the underlying Teflon tape, and installing a new wire with proper tension to ensure consistent thermal conductivity.
Understanding the nuances of wire replacement not only prevents downtime but also extends the lifespan of your heating elements and transformers. This guide provides a comprehensive walkthrough for maintenance professionals and machine operators to master this essential task.
Understanding the Role of Seal Wires in Packaging
Signs That Your Seal Wire Needs Immediate Replacement
Step-by-Step Guide to Replacing Seal Wires
The Importance of Teflon Tape Maintenance
Common Mistakes to Avoid During Installation
Optimizing Your Shrink Wrap Machine for Longevity

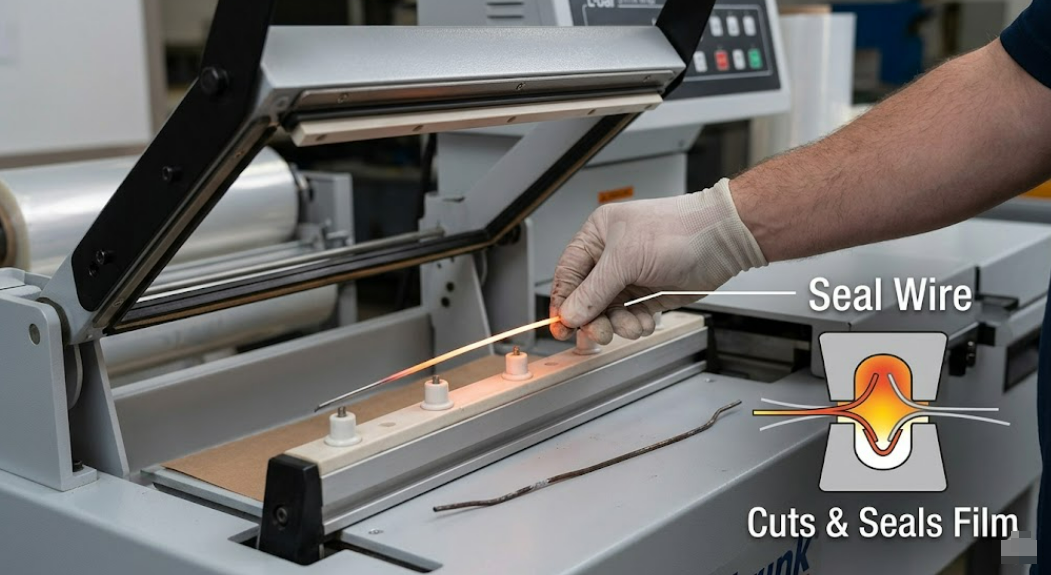

The seal wire serves as the electrical resistance heating element in a shrink wrap machine, responsible for simultaneously cutting the plastic film and fusing the layers together to create an airtight seal.
In a standard L-sealer or I-bar shrink wrap machine, the seal wire is typically made of Nichrome (Nickel-Chromium) alloy. This material is chosen for its ability to withstand high temperatures and resist oxidation. When the sealing arm is lowered, a timed electrical pulse passes through the wire, generating instantaneous heat through resistance.
The quality of this wire directly impacts the "shrink" phase of the process. If the seal is weak or perforated incorrectly due to a degraded wire, the film will pull apart when it enters the heat tunnel. A professional-grade shrink wrap machine relies on the precise gauge and tension of this wire to maintain high-speed production cycles without compromising the integrity of the package.
Furthermore, the wire works in tandem with a pulse transformer. The diameter of the wire must match the machine’s specifications to ensure the electrical load is balanced. Using the wrong gauge can result in a shrink wrap machine that either under-heats, leading to "dog ears" on the package, or over-heats, which causes the film to smoke and the wire to snap prematurely.
Visible signs of seal wire degradation include physical breaks, severe carbon buildup (black crust), inconsistent sealing temperatures across the length of the bar, and a "dragging" sensation when the film is cut.
One of the most common indicators that your shrink wrap machine requires maintenance is the appearance of "weak spots" in the seal. If you notice that the center of the package is sealed perfectly but the edges are pulling apart, it usually indicates that the wire has thinned out in certain areas due to oxidation, causing uneven electrical resistance.
Another red flag is the accumulation of burnt plastic residue on the wire. While minor buildup is normal, excessive carbonization acts as an insulator, forcing the operator to increase the "seal time" or "heat" settings on the shrink wrap machine. This creates a vicious cycle where higher heat leads to faster wire degradation and potential damage to the underlying phenolic or silicone rubber strips.
Regular inspection schedules should include checking for wire "pitting." If the surface of the wire looks like it has tiny craters, it is nearing the end of its functional life. Ignoring these signs can lead to unexpected downtime during peak production hours, which is far more costly than a proactive 10-minute wire change.

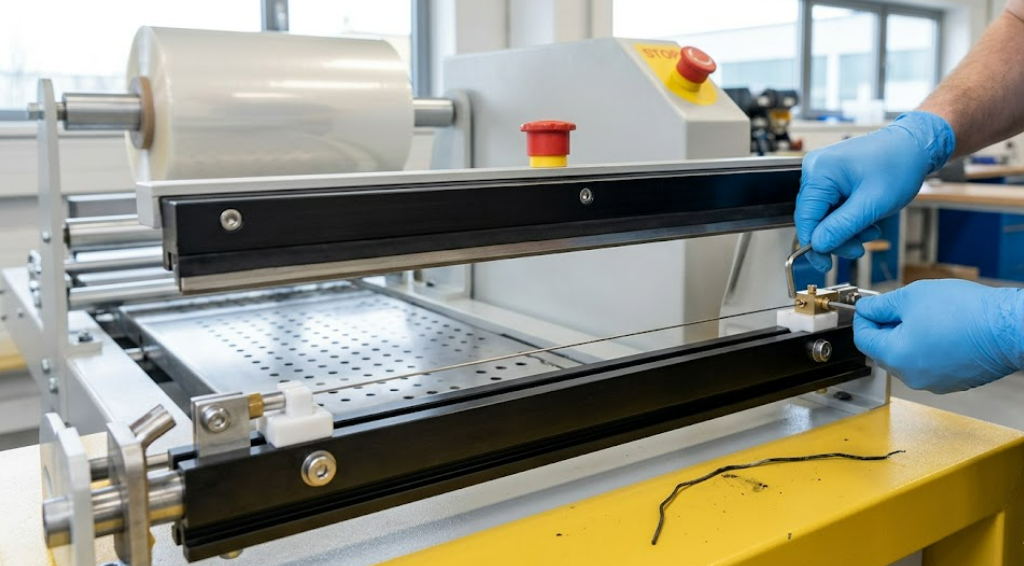

To replace the wire, you must first power down the shrink wrap machine, loosen the terminal screws at both ends of the seal bar, discard the old wire, clean the channel, and then thread the new wire while maintaining spring-loaded tension.
Preparation and Safety: Always unplug the shrink wrap machine from the power source. The sealing area can remain hot for several minutes after use, so ensure the components have cooled to room temperature before touching the heating elements.
Removal of Old Components: Use a screwdriver or hex key to loosen the tensioning blocks. Remove the old Nichrome wire. At this stage, it is highly recommended to inspect the Teflon (PTFE) adhesive tape. If the tape is charred or worn through, the wire will short-circuit against the metal frame of the shrink wrap machine.
Installation and Tensioning: Attach one end of the new wire to the fixed post. Stretch the wire across the sealing arm to the spring-loaded tensioning post. It is crucial that the wire is under tension; as Nichrome heats up, it expands. If there is no tension, the wire will sag when hot, leading to crooked seals and potential shorts.
Proper alignment is the final step. Ensure the wire sits perfectly centered on the heat-resistant buffer strip. Once secured, trim any excess wire to prevent it from touching the machine housing. For more information on maintaining various aspects of your equipment, you can read about https://www.packingmachine.com/How-Long-Does-Shrink-Wrap-On-A-Boat-Last-id45152975.html to understand how environmental factors affect different types of wraps.
Teflon tape acts as a critical barrier that prevents the hot seal wire from sticking to the film and protects the metal seal bar from electrical grounding and thermal damage.
There are typically two layers of Teflon tape involved in a shrink wrap machine setup. The "under-tape" sits beneath the wire, providing electrical insulation. If this layer fails, the current will take the path of least resistance through the machine's frame, potentially blowing a fuse or damaging the control board. The "over-tape" (in some designs) or the tape on the counter-pressure pad prevents the melting plastic from adhering to the hot wire.
When a shrink wrap machine produces "smoke" during the sealing process, it is often not the film that is burning, but the adhesive on the Teflon tape that has been exposed due to a tear. Operators should replace the tape every time they replace the wire to ensure a smooth, non-stick surface.
Tape Type | Function | Replacement Frequency |
Adhesive Teflon (Lower) | Insulates the wire from the metal bar | Every wire change |
Non-Adhesive/Glass Cloth | Provides a cushion for the seal | Every 3-6 months |
Zone Tape | Protects the upper sealing arm | When tracking or sticking occurs |
Neglecting this simple component can lead to "film buildup," where molten plastic accumulates on the wire, causing poor thermal transfer and messy, unprofessional seals.
The most frequent errors during seal wire replacement include over-tightening the wire, failing to clean the contact points, and using a wire gauge that is incompatible with the shrink wrap machine's transformer.
Over-tensioning is a primary cause of premature wire breakage. While the wire needs to be taut, the springs in the tensioning blocks must have enough "travel" to accommodate the thermal expansion of the metal. If the wire is pulled too tight when cold, it will snap the moment it reaches operating temperature. Conversely, a loose wire on a shrink wrap machine will result in a curved seal line, which is aesthetically unpleasing for retail products.
Another common oversight is failing to clean the terminal blocks. Over time, dust and oxidation can create resistance at the connection point. This causes the ends of the wire to get hotter than the center, often leading to the wire "burning off" right at the screw. Using a small wire brush or contact cleaner ensures a solid electrical path.
Finally, always verify the Ohm rating or gauge of the wire. A shrink wrap machine designed for a 0.8mm round wire may struggle or overheat if a 1.2mm wire is installed. This mismatch can strain the internal circuitry and lead to expensive repairs of the pulse timer or transformer.
Long-term efficiency is achieved by using the lowest possible heat and time settings that still produce a clean seal, alongside a rigorous daily cleaning routine for the sealing area.
To extend the life of your consumables, start by calibrating your shrink wrap machine settings. Many operators make the mistake of "cranking up the heat" to speed up production. However, it is more effective to increase the "dwell time" (the duration the arm stays down) slightly rather than the temperature. High heat is the number one killer of Nichrome wires and Teflon tape.
Reduce Cycle Heat: Lower the voltage/heat setting until the seal fails, then move it up in small increments until a perfect seal is achieved.
Clean After Every Shift: Use a soft cloth or a specialized cleaning pad to remove any film residue while the wire is still slightly warm.
Use High-Quality Film: Lower-grade films often contain impurities that stick to the shrink wrap machine elements more aggressively, requiring more frequent cleaning and higher temperatures.
By treating the seal wire as a precision instrument rather than just a piece of metal, you can significantly reduce the operational costs of your shrink wrap machine. Regular maintenance not only ensures a better-looking product for your customers but also creates a safer, more reliable working environment for your staff.
