A Cling Film Wrapping Machine is a specialized industrial packaging system designed to stretch plastic film tightly over food products or trays, cut the film cleanly using a thermal or mechanical blade, and seal the loose edges to create a protective, airtight barrier that preserves freshness and prevents contamination.
Choosing the correct automation level for your packaging setup requires a deep analysis of your current production volume, labor constraints, and budget. This comprehensive industry guide will break down the fundamental engineering behind these machines and provide an exhaustive side-by-side comparison of manual, semi-automatic, and fully automatic configurations to help you make an informed investment decision.
Section | Summary |
What Is a Cling Film Wrapping Machine? | An introduction to the core functionality, operational purpose, and basic engineering design of modern film packaging systems. |
Types of Cling Film Wrapping Machines | A deep-dive exploration into the three distinct tiers of automation, outlining how each system operates and where it fits in the industrial food sector. |
A Cling Film Wrapping Machine is a commercial packaging apparatus engineered to apply stretchable plastic film across food products or rigid trays, featuring heat cutting bars and thermal sealing plates to deliver a secure, professional finish.
At its core, this machinery eliminates the inefficiencies associated with tearing and applying plastic wrap by hand. In any professional food commercial enterprise, consistency is vital. The machine secures the plastic film roll on a set of low-friction rollers, allowing an operator or an automated arm to draw the film smoothly without snagging or bunching. By providing uniform tension control, these systems ensure that the film stretches evenly across the contours of the food product, which not only improves visual clarity but also minimizes material usage per package. For a comprehensive look at the science behind these materials, discovering what is the use of cling film for packaging reveals how oxygen transmission rates and moisture barriers are optimized through precise machine application.
Beyond simple film dispensing, these machines integrate vital heating elements that transform standard plastic film into a tamper-evident, airtight seal. A typical setup includes a low-voltage hot cutting wire or a guarded blade that cuts the film instantly when slight downward pressure is applied. Following the cut, the wrapped tray is placed briefly onto a heated Teflon-coated pad. This radiant heat instantly shrinks and fuses the overlapping layers of film on the underside of the tray, forming a flat, durable weld that prevents leaks and keeps air out.
Integrating a professional Cling Film Packaging Machine into your workflow transforms food preservation from a variable manual chore into a predictable, standardized packaging pipeline. This technology is widely adopted across supermarkets, meat packaging facilities, vegetable distribution hubs, and commercial central kitchens worldwide.
Extended Product Shelf Life: The tight, uniform stretch achieved by a machine removes pocketed ambient air, significantly slowing down oxidative degradation and microbial growth on fresh proteins and produce.
Substantial Material Savings: Mechanical tension brakes allow the film to stretch up to its optimal percentage limit without snapping, reducing total plastic consumption by up to twenty-five percent compared to unassisted manual hand tearing.
Professional Retail Presentation: Eliminates messy, loose edges and unsightly wrinkles, creating a smooth, crystal-clear glass-like surface that enhances consumer confidence on the retail shelf.
The marketplace categorizes Cling Film Wrapping Machines into three distinct operational tiers—manual, semi-automatic, and fully automatic systems—each tailored to specific production capacities, labor strategies, and capital expenditure allowances.
Understanding the distinctions between these automation levels is critical for aligning your machinery acquisition with your facility's real-world operational demands. A low-volume boutique specialty butcher shop does not require the complex high-speed conveyor belts of an enterprise processing center, just as a high-throughput logistics hub would suffer severe bottlenecks if forced to rely on manual tabletop equipment. Each class of machine approaches the tasks of film stretching, cutting, and base sealing with varying degrees of mechanical assistance.
When evaluating these systems, decision-makers must weigh the initial machinery procurement cost against long-term labor expenses and projected throughput volumes. Choosing the right classification of Cling Film Wrapping Machines ensures your packaging center remains a highly optimized profit center rather than an operational bottleneck.

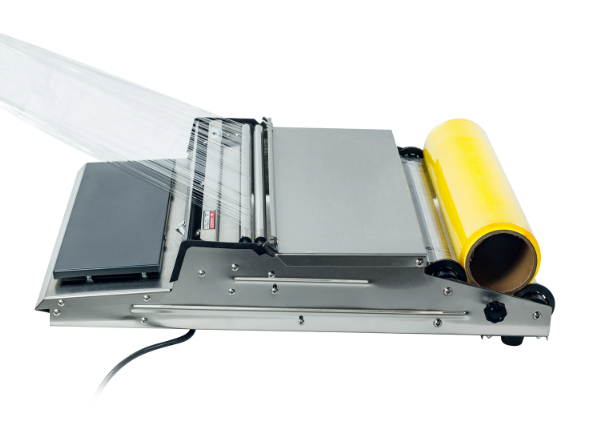

Manual food wrapping machines represent the introductory tier of packaging hardware, relying entirely on the physical movements of an operator to pull the film over the tray, press it against a heated wire to cut it, and hold it down onto a hot plate to complete the bottom seal.
These compact, tabletop units are constructed from durable stainless steel and are designed for space-constrained environments. The operator places the food tray on the working deck, manually pulls the leading edge of the film over the product, stretches it tight, and lowers the tray across a heated cutting bar. Once separated from the roll, the operator manually tucks the loose side flaps beneath the container and presses the base against a built-in thermal hot plate to fuse the plastic layers together. To see a prime example of this design in action, the HW-450 Plastic Container Cling Film Machine demonstrates how a streamlined manual footprint can easily manage daily on-demand packaging needs for fresh retail displays.
While manual machines feature low initial investment costs and require minimal training, they are fundamentally restricted by human physical speed and operator fatigue. They are ideal for back-of-house supermarket deli counters, small organic farms, and restaurant prep stations where packaging is performed intermittently throughout the day.
Minimal Financial Entry Point: Low capital investment makes manual machines highly accessible for startups, local grocers, and small culinary businesses.
Compact Tabletop Design: The small physical footprint allows these units to fit seamlessly into cramped commercial kitchens or mobile catering setups without restructuring existing countertops.
Zero Mechanical Maintenance Complexity: Lacking complex internal motors, gearboxes, or pneumatic cylinders, these machines require virtually no technical maintenance beyond daily sanitation and occasional cutting wire replacement.
Semi-automatic cling film wrapping machines bridge the gap between human labor and automation by requiring an operator to place the product tray onto a designated lift pad, which then triggers a motorized mechanism to automatically stretch, wrap, and cleanly cut the film.
In a semi-automatic operational sequence, the human element is refined to product placement and removal. The operator places a loaded tray into the machine's nesting cradle. Once an optical sensor or a physical foot pedal is activated, mechanical pusher arms take over. The machine draws the film across the product with automated precision, guaranteeing consistent tension that human hands cannot replicate. The internal motorized cutting blade fires automatically, and the package is passed across an internal heating system to set the bottom weld before returning the completed tray back to the operator or onto a small discharge slide.
These mid-tier units significantly boost packing speeds while reducing the physical strain on workers during extended multi-hour shifts. They represent an excellent upgrade path for growing food enterprises, medium-scale meat packing facilities, and high-volume independent supermarkets looking to optimize their labor utilization.
Enhanced Throughput Speeds: Capable of processing double or triple the volume of a manual station, easily reaching speeds of fifteen to twenty-five finished packages per minute.
Reduced Worker Fatigue: Automating the physical stretching and cutting phases eliminates repetitive strain injuries, allowing staff to maintain high focus and productivity.
Consistent Presentation Standards: Motorized tension controls ensure every single tray receives the exact same amount of stretch and plastic wrap, eliminating human variation.
Fully automatic cling film wrapping machines operate as completely hands-free industrial solutions, utilizing an integrated network of infeed conveyor belts, smart optical sensors, motorized film stretching bars, and automated outfeed elevators to continuously package hundreds of trays per hour without any direct human touch.
These high-throughput systems are designed to operate as the centerpiece of large-scale industrial food manufacturing and distribution lines. Products arrive via an automated intake conveyor belt, where intelligent optical sensors instantly calculate the package's weight, width, and height profile. The machine dynamically adjusts its film payout to fit the specific product dimensions perfectly. High-speed mechanical claws wrap the film around all four corners of the container simultaneously, cut the sheet with a cold or hot internal blade assembly, and pass the tray directly onto a continuous thermal belt that permanently welds the base. Investing in a heavy-duty industrial Cling Film Packaging Machine allows facilities to establish continuous, high-efficiency packaging blocks capable of operating twenty-four hours a day.
Furthermore, fully automatic machines often integrate inline weigh-price labeling modules. As the wrapped tray emerges from the sealing zone, it is weighed, a custom barcode label with the pricing data is printed, and a robotic applicator stamps the label onto the film surface in a single microsecond window. These units are found in centralized logistics hubs, large industrial poultry plants, and mega-scale agricultural processing facilities.
Maximum Throughput Capability: Effortlessly handles massive production demands, tracking at speeds ranging from forty to over eighty packages per minute depending on the model configuration.
Total Elimination of Manual Handling: Maximizes food safety and hygiene protocols by eliminating human contact during the critical packaging and sealing phase.
Advanced Production Data Tracking: Integrated digital control panels allow managers to track real-time material usage, total package counts, and overall equipment effectiveness (OEE) metrics.
To assist your procurement team in selecting the perfect machinery assets, the engineering and operational parameters of all three machine classifications have been compiled into a multi-dimensional comparative matrix below.
Engineering Parameter | Manual Wrapping Systems | Semi-Automatic Systems | Fully Automatic Systems |
Average Speed (Packs/Min) | 5 to 10 packs per minute | 15 to 25 packs per minute | 40 to 80+ packs per minute |
Primary Labor Requirement | Continuous manual pulling, cutting, and sealing | Manual loading and unloading into the machine cradle | Periodic raw material roll replenishment only |
Footprint Requirements | Low, easily sits on any open kitchen countertop | Moderate, requires dedicated standalone workspace | High, requires a designated production line floor plan |
Ideal Production Environment | Local bakeries, grocery delis, institutional kitchens | High-volume retail stores, medium distribution centers | Large-scale food processing factories, logistics centers |
Inline Labeling Integration | Completely separate manual process | Optional add-on attachments available | Fully integrated seamless inline modules |
Film Thickness Adaptability | Manual adjustment via operator feel | Digital input via simple control dial knob | Automated automatic sensor adjustment systems |
Selecting the ideal configuration from the wide array of available commercial Cling Film Wrapping Machines comes down to balancing your current daily output against your operational growth projections. For small-scale retail operations and catering environments where versatility and a low initial cost are favored, a robust manual tabletop sealer remains a dependable and highly functional tool.
As your business scales and packaging volumes increase, transitioning to a semi-automatic or fully automatic setup represents a critical step toward reducing labor costs, controlling film waste, and ensuring absolute presentation uniformity across your entire product line. By aligning your facility's specific capacity targets with the corresponding machinery tier detailed in this guide, you can establish a highly profitable, reliable, and compliant food packaging infrastructure for years to come.
