How to make the best shrink package by adjusting the shrinking time and temperature?

The efficiency of a shrink wrap machine is often measured by the visual quality and structural integrity of the finished package. In the competitive world of industrial secondary packaging, achieving the "perfect shrink" is not merely a matter of aesthetic appeal; it is a critical factor in product protection and brand perception. Manufacturers often struggle with common defects like "dog ears," burn-through holes, or "fish eyes," most of which stem from an improper calibration of the two most vital variables in the process: heating temperature and dwell time.

To achieve the best shrink package, operators must synchronize the shrink wrap machine temperature with the conveyor speed (dwell time) based on the specific film polymer (PVC, POF, or PE) and thickness. Generally, polyolefin (POF) films require a tunnel temperature between 250°F and 350°F with a dwell time of 3 to 5 seconds, ensuring the heat is high enough to trigger the film's memory while the air circulation remains uniform to prevent localized overheating.

Understanding the physics of heat transfer within a shrink tunnel is essential for any high-volume production line. This guide provides a deep dive into technical adjustments, material science, and machine maintenance to help you master the balance of variables. By the end of this article, you will be equipped to eliminate common packaging errors and maximize the output of your shrink wrap machine.

Table of Contents and Section Summaries

Understanding the Core Dynamics of Shrinkage

Shrinkage is a thermodynamic process where heat causes the pre-stretched molecules of a plastic film to return to their original, unstretched state, tightly contouring to the product.

When a film is manufactured, it is stretched while hot and then quickly cooled to "lock" its molecules in a high-energy, unstable state. This is known as "molecular memory." When you pass a product wrapped in this film through a shrink wrap machine, the heat softens the plastic, allowing the internal stresses to release. This causes the film to contract. However, if the heat is applied too slowly, the film may relax without shrinking effectively; if applied too quickly or at too high a temperature, the polymer chains break, leading to holes.

The interaction between the machine and the film is governed by heat transfer coefficients. The air inside the tunnel must transfer enough energy to the film to reach its glass transition temperature without exceeding its melting point. This window is often quite narrow, specifically for high-clarity films like Polyolefin (POF). Therefore, understanding the heat capacity of your specific product is also vital; a cold metal object will absorb heat from the film, requiring a higher tunnel temperature than a lightweight plastic bottle.

Consistent results depend on "balanced shrinkage," which refers to the film shrinking equally in both the machine direction (MD) and the cross-direction (CD). Modern shrink wrap machine technology allows for micro-adjustments in air baffles to ensure this balance is maintained regardless of the product's geometry.

Calibrating Temperature for Different Film Types

Temperature settings on a shrink wrap machine must be customized according to the chemical composition and gauge of the film, ranging typically from 210°F for thin PVC to over 375°F for heavy-duty Polyethylene.

Each material responds differently to thermal energy. PVC (Polyvinyl Chloride) is often used for non-food items and has a lower shrink temperature. It is brittle but provides excellent clarity. In contrast, POF (Polyolefin) is the industry standard for retail packaging because it is food-safe, incredibly durable, and offers a high degree of shrink force. Because POF is more "rubbery," it requires a more precise heat range to prevent it from becoming cloudy or brittle after the process.

For those looking to understand the longevity of these materials in specialized environments, it is helpful to compare industrial applications, such as how long shrink wrap lasts on a boat versus retail shelving. Heavy-duty applications like boat wrapping use thick Polyethylene (PE), which requires much higher heat and a different type of shrink wrap machine or heat tool compared to the standard tunnel used for consumer goods.

Comparative Temperature and Application Table

When setting up your shrink wrap machine, always start at the lower end of the recommended temperature range and increase in 5-degree increments. Overheating not only wastes energy but can also cause "burn-through," where the film melts away from the product, leaving unsightly gaps.

Optimizing Dwell Time and Conveyor Speed

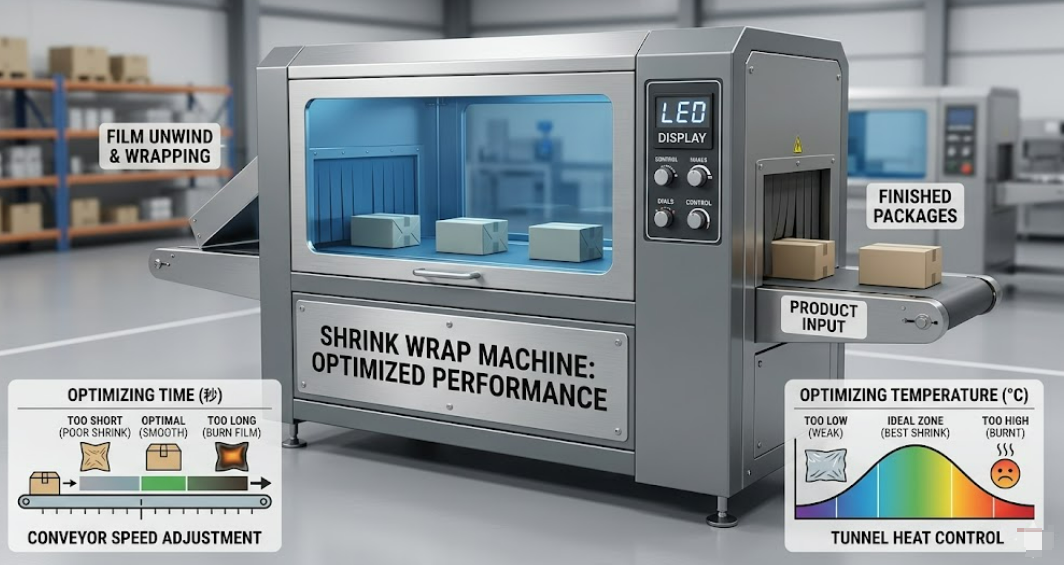

Dwell time, or the duration a product remains inside the heated tunnel, must be inversely balanced with temperature: as conveyor speed increases, the temperature must usually rise to ensure the film reaches its shrink point in a shorter window.

The "sweet spot" for dwell time is generally between 3 and 5 seconds for standard retail items. If the conveyor moves too slowly, the product and the film are exposed to heat for too long, which can lead to the film becoming "dead" (losing its elasticity) or the product itself being damaged by the heat. Conversely, if the conveyor is too fast, the film will not have enough time to reach its optimal shrink temperature, resulting in loose, saggy packaging with "dog ears" at the corners.

The shrink wrap machine operator must monitor the "recovery time" of the tunnel as well. When a cold product enters the tunnel, it absorbs heat, causing the internal temperature to drop. If the conveyor is running at high speed with a high volume of products, the heating elements must be powerful enough to maintain a consistent temperature. This is why high-speed production lines require tunnels with more powerful blowers and longer heating chambers to allow for a longer dwell time at higher speeds.

1. Calculate Throughput: Determine how many units per minute (UPM) you need to achieve.

2. Synchronize Sealing and Shrinking: Ensure your L-bar sealer or side sealer speed matches the tunnel conveyor speed to prevent bottlenecks.

3. Adjust for Product Mass: Heavy items require a slower conveyor speed because they act as heat sinks, drawing energy away from the film.

The Role of Airflow and Circulation

High-velocity airflow is the most critical factor in ensuring an even shrink, as it breaks the "boundary layer" of air around the product and forces heat into every crevice of the film.

Without proper air circulation, a shrink wrap machine would suffer from "hot spots" and "cold spots." If the air is stagnant, the top of the package might burn while the bottom remains unshrunk. Professional-grade machines utilize adjustable baffles and variable-speed blowers to direct air precisely where it is needed. For example, if you are wrapping a tall, thin object, you want the air to hit the sides of the package first to prevent the film from sliding down before it shrinks.

"Fish eyes"—small, circular wrinkles—are often the result of poor airflow. When the film is heated but not "buffeted" by moving air, it can shrink unevenly. Increasing the blower speed on your shrink wrap machine can often solve this without needing to increase the temperature. Modern systems often use 360-degree air technology, ensuring that the bottom of the package (where the film is often tucked or sealed) receives the same thermal energy as the top.

Benefits of Controlled Airflow

1. Consistency: Eliminates localized melting or uneven tension.

2. Energy Efficiency: Better circulation means you can often run the tunnel at a lower temperature, saving electricity.

3. Speed: Faster air transfer allows for shorter dwell times and higher production rates.

Advanced Troubleshooting for Common Shrink Defects

Troubleshooting shrink defects requires a systematic approach to identifying whether the failure lies in the temperature, the dwell time, the airflow, or the film quality itself.

The most common issue is the "dog ear," which is a triangular flap of unshrunk film at the corners of a package. This is usually caused by insufficient heat or air reach. In this case, the operator should first check the air baffles of the shrink wrap machine to ensure air is reaching the corners. If that doesn't work, increasing the temperature by 10 degrees is the next logical step.

Another frequent problem is "clouding" or "hazing," where the film loses its transparency. This is almost always a sign that the temperature is too high, causing the polymer to slightly degrade or crystallize. To fix this, you must lower the temperature and potentially slow down the conveyor speed to maintain a proper shrink without "cooking" the plastic.

• Burn Holes: Lower the temperature or increase conveyor speed. Check for sharp edges on the product.

• Weak Seals: This is usually an issue with the sealing bar, not the tunnel. Ensure the seal temperature is high enough and the pressure is even.

• Ballooning: If the package puffs up like a balloon, the air inside is trapped. Use "vented" film or adjust the "pinner" (perforator) on your shrink wrap machine to allow air to escape during the shrink process.

• Crows Feet: Wrinkles at the corners. Usually indicates too much film was used; try a smaller width of film.

Maintenance Strategies for Long-Term Performance

Routine maintenance of a shrink wrap machine is essential to ensure that the heating elements, blowers, and conveyors remain in sync, preventing temperature fluctuations that lead to wasted material.

Over time, dust and plastic residue can accumulate on the heating elements of a shrink wrap machine. This buildup acts as an insulator, forcing the machine to work harder and leading to inconsistent temperatures. Furthermore, conveyor belts can become worn or misaligned, causing jerky movements that disrupt the dwell time. A weekly cleaning schedule, focusing on the heating coils and the blower fans, can extend the life of the machine by years.

Lubrication is also vital. The high-heat environment of a shrink tunnel can cause standard lubricants to break down. Using high-temperature-rated lubricants on the conveyor bearings ensures smooth operation. Additionally, the silicone curtains at the entrance and exit of the tunnel should be inspected. If they are torn or missing, heat will escape, leading to massive energy loss and uneven shrinking near the ends of the tunnel.

Weekly Maintenance Checklist

• Inspect Heating Elements: Look for signs of carbon buildup or "hot spots."

• Clean Blower Fans: Ensure no debris is obstructing the air intake.

• Check Conveyor Tension: Prevent slipping that could alter dwell time.

• Test Thermocouples: Use an external thermometer to verify that the machine’s digital display matches the actual internal temperature.

• Verify Perforator Sharpness: Ensure the "pinner" is creating clean holes for air escape.
